DUKE RIM LUCKY JACK SLS4
The Lucky Jack SLS4 are the flagship of the XC carbon range. They are designed for all kinds of XC.
The Lucky Jack SLS4 are the flagship of the XC carbon range. They are designed for all kinds of XC. The front/rear widths are differentiated: 30mm/28mm or 28mm/26mm depending of the tire section. These rims are used in the XCO World Cup by the BMC Racing Team, 3-time world champion in 2022 with Pauline Ferrand-Prévot and used by Matthieu Van der Poel and many other riders.
It is the ultimate weapon for demanding races. Light, rigid and strong, it will be able to cope with all situations. It is characterized by an unbeatable lateral stiffness/weight ratio and has an unequaled level of responsiveness. For athletes looking for the must. The rims feature a new, modern, lower and wider profil with an asymmetrical profile and hookless walls. The 2.8 mm offset makes it possible to further close the spoke brace angle and thus increase the lateral rigidity and stability of the wheel without taking weight. The tensions of the spokes between the two layers are more balanced, which guarantees better durability of the wheel. The front and rear widths are differentiated (6TERS concept): the greater width at the front will give a larger volume to the tire to provide more grip in the supports. The rear rim has a smaller section to improve comfort and impact resistance. The hookless walls make it possible both to reinforce the rim and to reduce its weight. This technology has been used successfully on our rims since 2011. Anti-burp system: the tire bead is kept in position whatever its pressure, no risk of air loss in the corners. DUKE owns its manufacturing tools.
Duke French brand
Technology
-

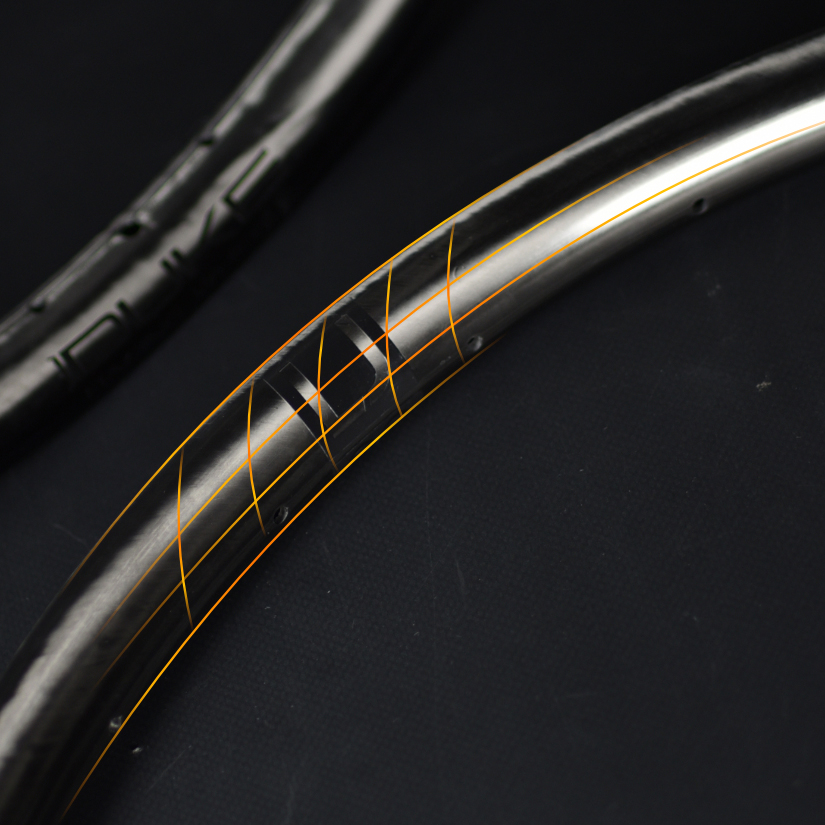

SLS4 (Super light series 4)
SLS4 (Super Light Series 4)
An exclusive manufacturing process combining an optimized carbon fiber lay-up with aerospace-grade resin
- 10% lighter than the previous SLS3 generation
- More controlled vertical compliance for enhanced ride dynamics
- Better vibration filtering for improved comfort and control -
DRC (Dynamic Response Comfort)
DRC (Dynamic Response Comfort)
Controlled vertical flex and rebound
- More dynamic handling during weight transfers and bermed corners
- Increased comfort on rough terrain
- Reduced energy loss, more speed and efficiency -
Width
Optimized Internal Width
Maximizes tire volume and performance
- Enables lower pressures without sacrificing rolling efficiency
- Controls tire deformation for greater stability
- Improves control and comfort on all terrains -
VFP (Varnish Free Process)
VFP (Varnish Free Process)
A varnish-free finish process
- Reduces VOC emissions and carbon dust during production
- More scratch-resistant surface
- Naturally glossy finish -
Offset
OFFSET
Asymmetrical spoke lacing
- Balances spoke tension on both sides
- Improves lateral stiffness, stability, and long-term durability
- No added weight -
6Ters
6TERS
Differentiated internal rim widths for the front and rear wheels
- Wider front rim increases grip, handling, and control
- Narrower rear rim for better strength, stability, and efficiency
- Developed in partnership with leading XC race teams -
Hookless
HOOKLESS
Hookless rim design
- Lighter than traditional hooked rims
- Increases the tire’s internal air volume, boosting comfort and grip at lower pressures
- Proven DUKE technology since 2011 -
AntiBurp
AntiBurp
Anti-burp and anti-debeading system
- Specially designed inner rim hooks lock the tire beads securely
- Eliminates air loss under heavy cornering or compression
- Prevents tire debeading, even in the event of a puncture -

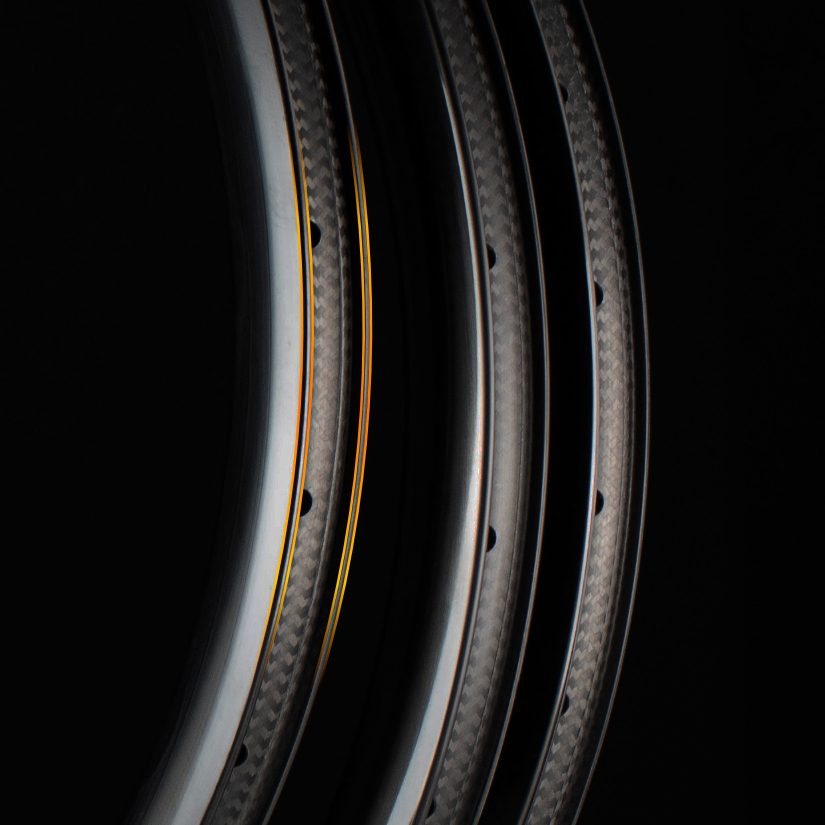

Anti-pinch
AntiPinch
Anti-pinch rim bead design
- Prevents tire cuts from hard impacts
- Dissipates shock energy
- Allows low-pressure riding without pinch-flat risks -
Tubeless Ready
Tubeless Ready
Tubeless-compatible rim design
- Compatible with UST and Tubeless Ready standards
- Each rim comes with DUKE tubeless tape and valve
- Also compatible with tube-type (clincher) setups
Data sheet
- RIM MATERIAL
- CARBON
- RIM PROFILE
- ASYMMETRIC
- RIM HEIGHT (MM)
- 19
20 - SYSTEM MAX WEIGHT (KG)
- 110
- INSIDE WIDTH (MM)
- 26.0
28.0
30.5 - TYPE OF BRAKING
- DISC
- MAX STRAIN (N)
- 1200.0
- PRACTICE TYPE
- XC
XC ENGAGED - NIPPLE POSITION
- EXTERNAL
- NIPPLE HEIGHT (MM)
- 14.0
- TYPE OF TYRE
- CLINCHER
TUBELESS - VALVE HEIGHT (MM)
- 34
- TAPE WIDTH (MM)
- 28.0
30.0
32.0 - MAX PRESSURE (BAR)
- 2.3B WITH 2.25" TYRE
- ERD JANTE(S)
- LJ 26 : 602
LJ 28 : 599
LJ 30 : 599 - ETRTO (MM)
- 622.0
- RIM OFFSET (MM)
- 2.6
2.8 - MOUNTING WITH WASHERS
- NO
- POSITION
- FRONT
REAR - TYRE SECTION RANGE
- 34MM 1,35" / 61MM 2,40"
48MM 1,90" / 66MM 2,60"
53MM 2,10" / 71MM 2,80" - RIM MODEL / WIDTH STICKERS
- LUCKY JACK 26 / 50MM
LUCKY JACK 28 / 52MM
LUCKY JACK 30 / 54MM - STICKER TYPE
- L50
L52
L54 - WARRANTY
- 3 YEARS
Crash replacement
We offer a crash replacement programme for carbon wheels. In case of accidents or heavy falls, violent shocks can damage your rim and make it impossible to use. With our Crash Replacement offer we offer you a service that allows you to replace your rim under special conditions: You get a 50 percent discount on the price of the rim (UD SLS carbon) 40 percent (3k Carbon), as well as the parts and the disassembly/reassembly. This offer is valid (for life) for an unlimited period of time for DUKE carbon rims and is transferable in the event of sale of the wheels to a third party.
