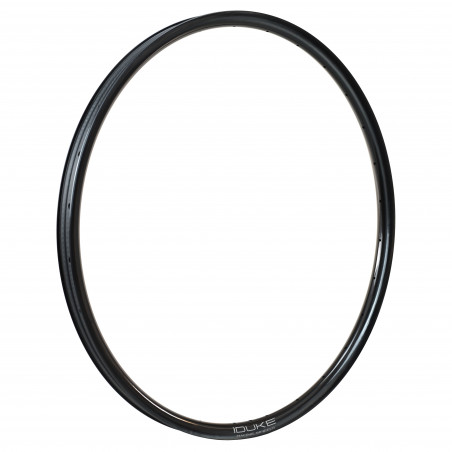

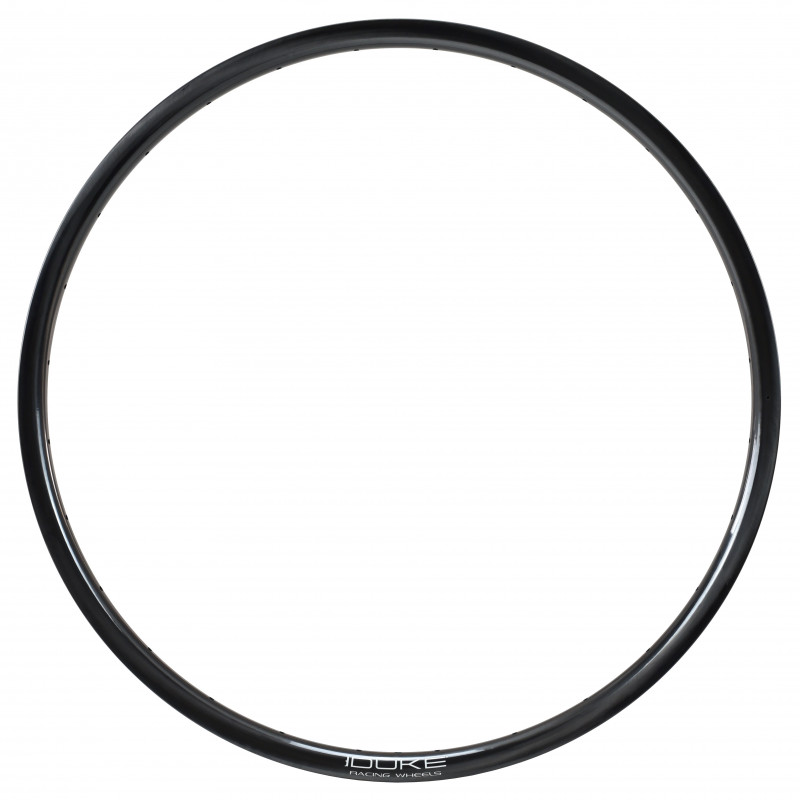

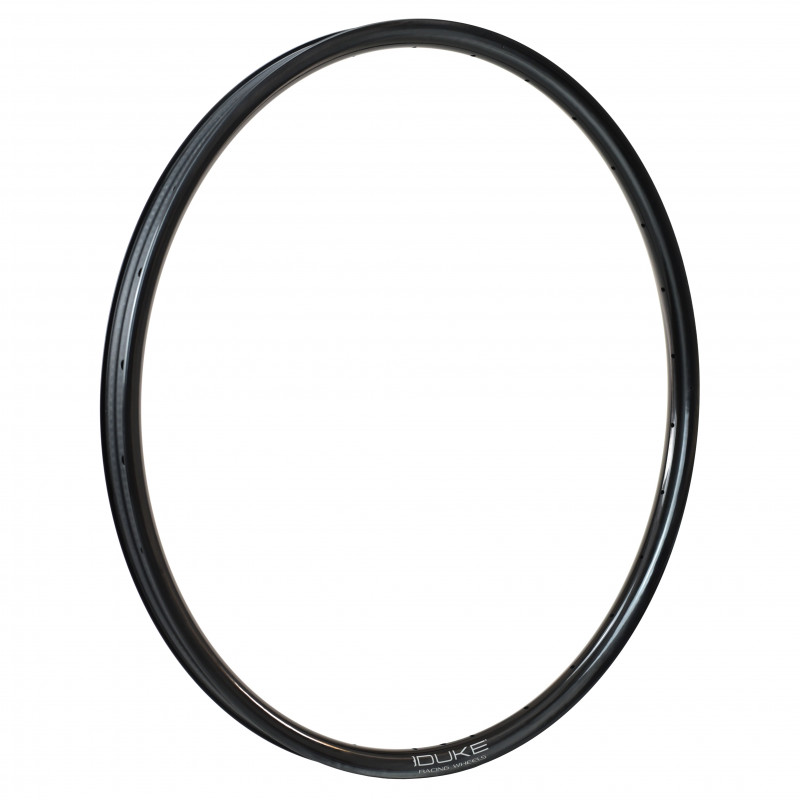

DUKE RIM FURY JACK SLS3 6TERS RR

Carbon rim for All Mountain and Enduro use

Variantes disponibles
525 g
€470.00 Tax included
9 In stock

Expected shipping date: 03/07/2025
Closed for inventory on June 30 and July 1

Quantity

favorite_border favorite

DUKE RIM FURY JACK SLS3 6TERS*

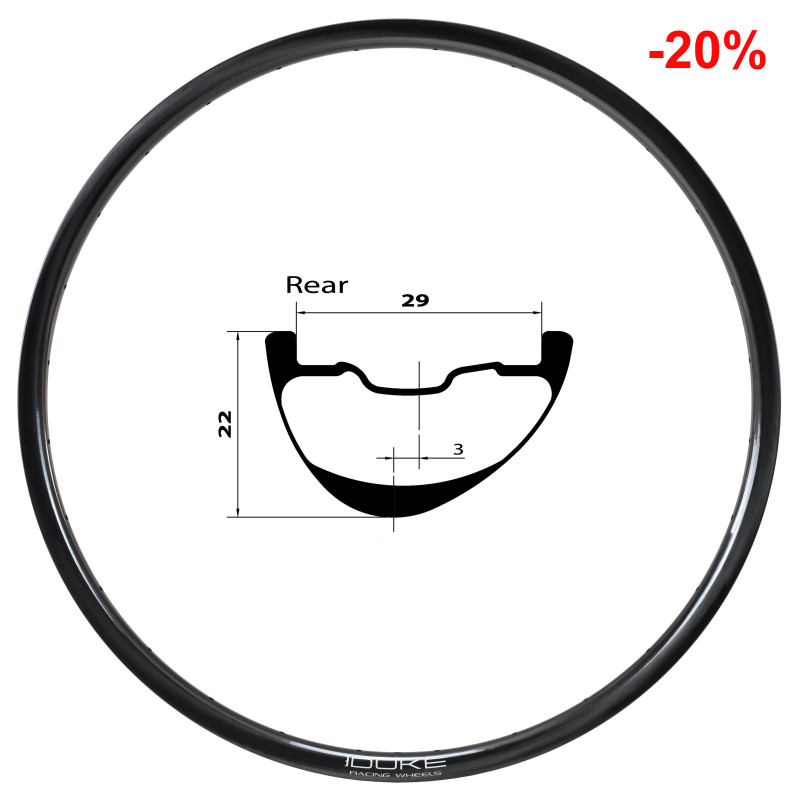

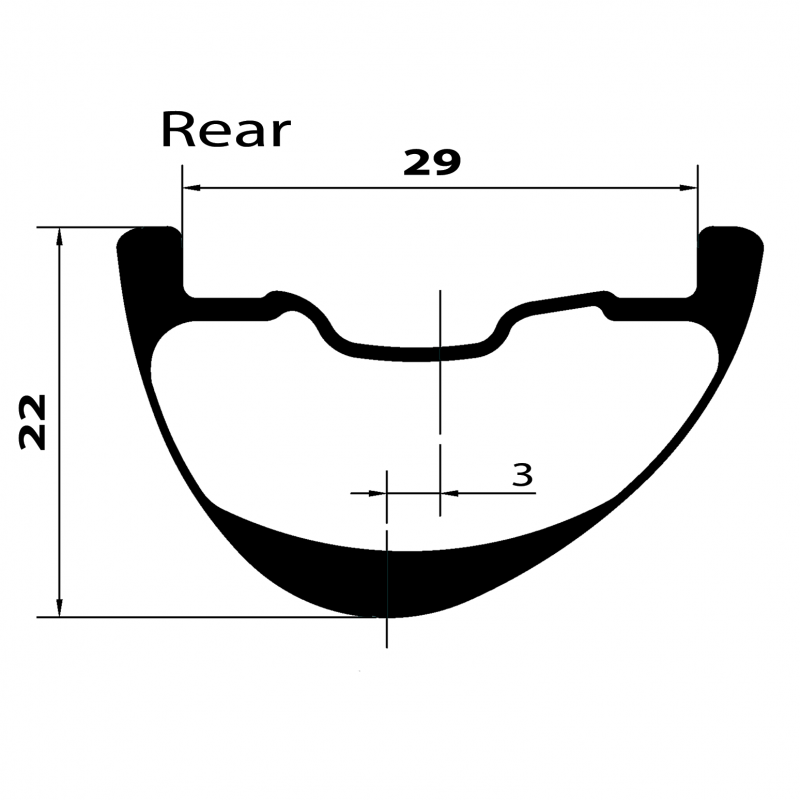

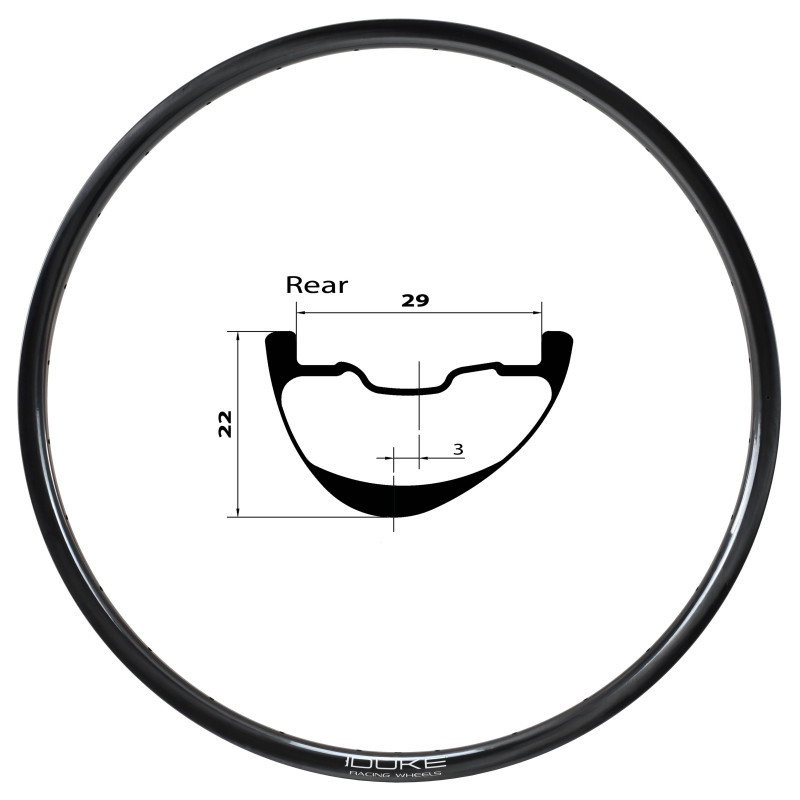

Made for Enduro Race, it's the predilection wheel of Rémy Absalon, Mégavalanche 2017 winner, its high profile gives it an incomparable style. The Hookless side, coupled with its height of 24mm(front) & 22mm (rear) increase its rigidity and its resistance to the impacts. You will understand, it is the ultimate weapon to chase the time of the stages while saving on the links. Thought for the Enduro World Series. Designed, developed and tested in France, The DUKE Fury Jack in carbon has an ASYMMETRICAL profile (offset of 3 mm) which allows to increase the lateral stiffness of the wheel without gaining weight. The internal width between the hooks / large walls is 32.5mm(front) & 29mm(rear). This gives more volume to the tires and improves efficiency, comfort and grip in turns. A wide rim also means being able to use thinner and lighter tires while maintaining comfort, The softness and grip provided by a larger volume of air. Hookless sides: the robustness of the rim is superior compared to a carbon rim with hooks. This technology has been used successfully on our rims since 2011. The height of the rim edge for 2015 is reduced by 1mm to further limit any risk of contact with the ground. Lateral stiffness improved by 40% compared to the previous version. Resistant to impacts even on the most brittle ground: Absorption of impact energy improved by more than 50% compared to the previous model. Anti-burp system: the heel of the tire is held in position whatever its pressure, no risk of "out rim". Tubeless or inner tube.
In 2019, MTB rims profiles are differentiated as we do not ask the rims the same qualities while riding :
A front wheel must give grip, be light, stiff and handy.
A rear wheel must be more comfortable, tronger and offer more efficiency.
Thus the front and rear wheels have different profiles and lay-ups.
In collaboration with Rémy and Julien Absalon, the 6TERS front and rear profiles complement each other for a greater efficiency in the trails.
Many of you are aware of different needs because you are already using different section tires at front and rear wheel.
The Duke 6TERS* concept offers a wider front rim than the rear rim for more grip and stiffness. Its weight is optimized for robustness.
The rear profile is reworked with a reduced section, with a new carbon fiber layer to improve compliance and increase the impact resistance, the constraints being much more important on the back wheel.
SLS3 Factory Process ‘21
All our carbon MTB rims now benefit from the manufacturing process tested and approved by the Super Light Series, which offers a 10% gain in rim’s weight.
This manufacturing process goes even further today as it is now made under dust-free laboratory and no longer requires sanding nor painting.
SLS3 products have an excellent aesthetic appearance, right out of the mold.
As no longer painted, the rims can not be scratched.
Impact resistance is not left out, since it is also improved by 20%.
SLS3 rims are built from UD carbon fiber only.
Anti-Pinch
Rim’s sidewalls are thickened to prevent cut of tires during impacts. (*6TERS = sisters = sœurs)

Technology

  • DRC (Dynamic Response Comfort)

    DRC (Dynamic Response Comfort)

    DRC (Dynamic Response Comfort)

    Controlled vertical flex and rebound
    - More dynamic handling during weight transfers and bermed corners
    - Increased comfort on rough terrain
    - Reduced energy loss, more speed and efficiency

  • SpokeCore

    SpokeCore

    SpokeCore

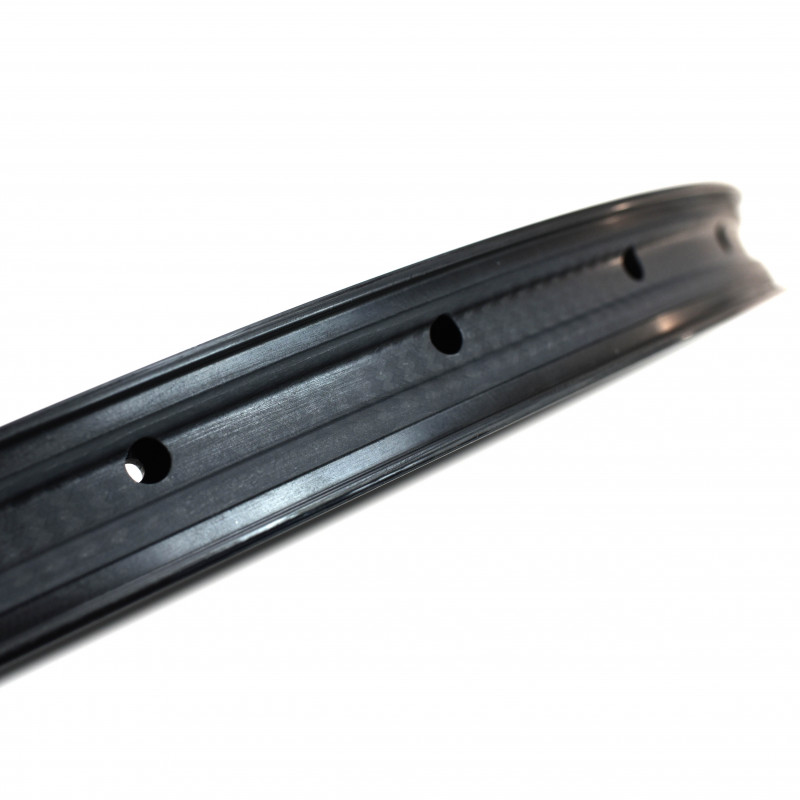

    Molded spoke holes that eliminate the need for drilling
    - Preserves carbon fiber integrity
    - Reinforces the structure
    - Allows for precise control of vertical and lateral stiffness
    - Reduced weight and increased reliability

  • Width

    Largeur interne optimisée

    Optimized Internal Width

    Maximizes tire volume and performance
    - Enables lower pressures without sacrificing rolling efficiency
    - Controls tire deformation for greater stability
    - Improves control and comfort on all terrains

  • VFP (Varnish Free Process)

    VFP (Varnish Free Process)

    A varnish-free finish process
    - Reduces VOC emissions and carbon dust during production
    - More scratch-resistant surface
    - Naturally glossy finish

  • Offset

    Offset

    OFFSET

    Asymmetrical spoke lacing
    - Balances spoke tension on both sides
    - Improves lateral stiffness, stability, and long-term durability
    - No added weight

  • 6Ters

    Rayons Sapim

    6TERS

    Differentiated internal rim widths for the front and rear wheels
    - Wider front rim increases grip, handling, and control
    - Narrower rear rim for better strength, stability, and efficiency
    - Developed in partnership with leading XC race teams

  • Hookless

    Hookless

    HOOKLESS

    Hookless rim design
    - Lighter than traditional hooked rims
    - Increases the tire’s internal air volume, boosting comfort and grip at lower pressures
    - Proven DUKE technology since 2011

  • AntiBurp

    AntiBurp

    Anti-burp and anti-debeading system
    - Specially designed inner rim hooks lock the tire beads securely
    - Eliminates air loss under heavy cornering or compression
    - Prevents tire debeading, even in the event of a puncture

  • Anti-pinch

    anti-pinch

    AntiPinch

    Anti-pinch rim bead design
    - Prevents tire cuts from hard impacts
    - Dissipates shock energy
    - Allows low-pressure riding without pinch-flat risks

  • Tubeless Ready

    Rayons Sapim

    Tubeless Ready

    Tubeless-compatible rim design
    - Compatible with UST and Tubeless Ready standards
    - Also compatible with tube-type (clincher) setups

Data sheet

RIM DIAMETER
29"
HOLES NUMBER
28
RIM MATERIAL
CARBON
RIM PROFILE
ASYMMETRICAL
RIM HEIGHT (MM)
22
SYSTEM MAX WEIGHT (KG)
130.0
INSIDE WIDTH (MM)
29.0
TYPE OF BRAKING
DISC
MAX STRAIN (N)
1200.0
PRACTICE TYPE
ALL MOUNTAIN E-BIKE
AM
E-BIKE ENDURO
END
TANDEM MTB
VAE XC
NIPPLE POSITION
EXTERNAL
NIPPLE HEIGHT (MM)
16.0
TYPE OF TYRE
TUBELESS OU CHAMBRE À AIR
VALVE HEIGHT (MM)
44
TAPE WIDTH (MM)
30.0
MAX PRESSURE (BAR)
2.2B WITH 2.40" TYRE
ERD JANTE(S)
FJ RR : 600
ETRTO (MM)
622.0
RIM OFFSET (MM)
3.0
MOUNTING WITH WASHERS
NO
POSITION
FRONT
REAR
TYRE SECTION RANGE
51MM 2,00" / 69MM 2,70"
STICKER TYPE
L54
RIM BRAND
JANTE DUKE
WARRANTY
3 YEARS
FINITION JANTE
UD PAINTLESS
