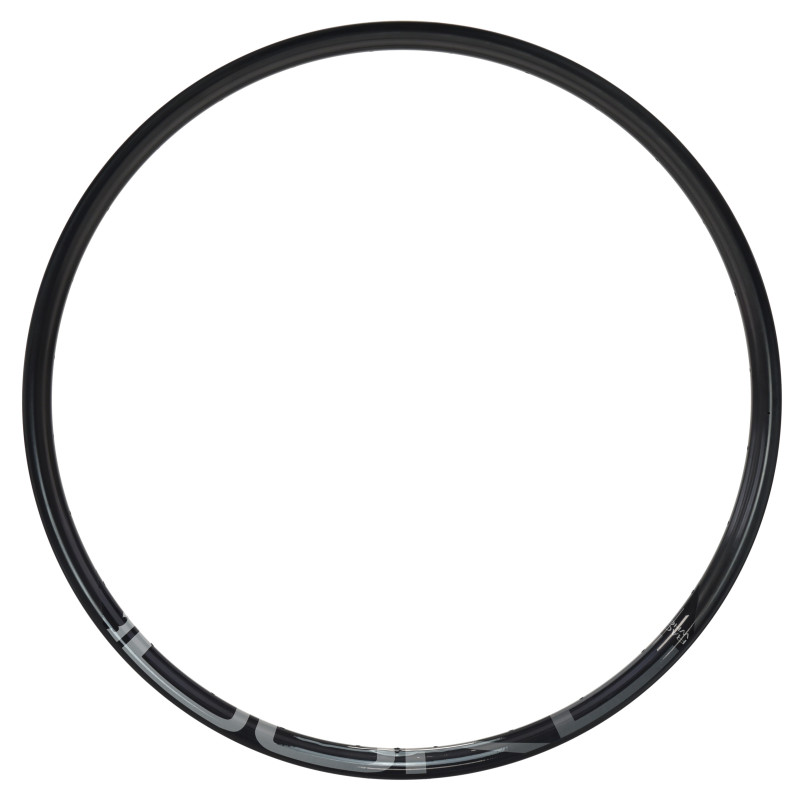

DUKE RIM LUCKY JACK SLS5 32"

Data sheet

RIM DIAMETER

32"

HOLES NUMBER

28

RIM MATERIAL

CARBON

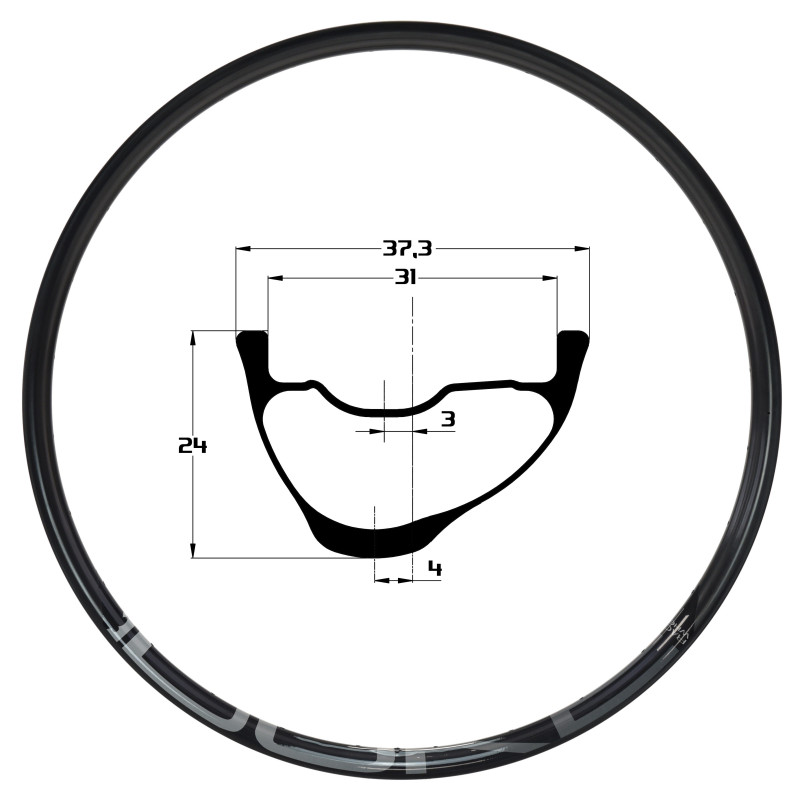

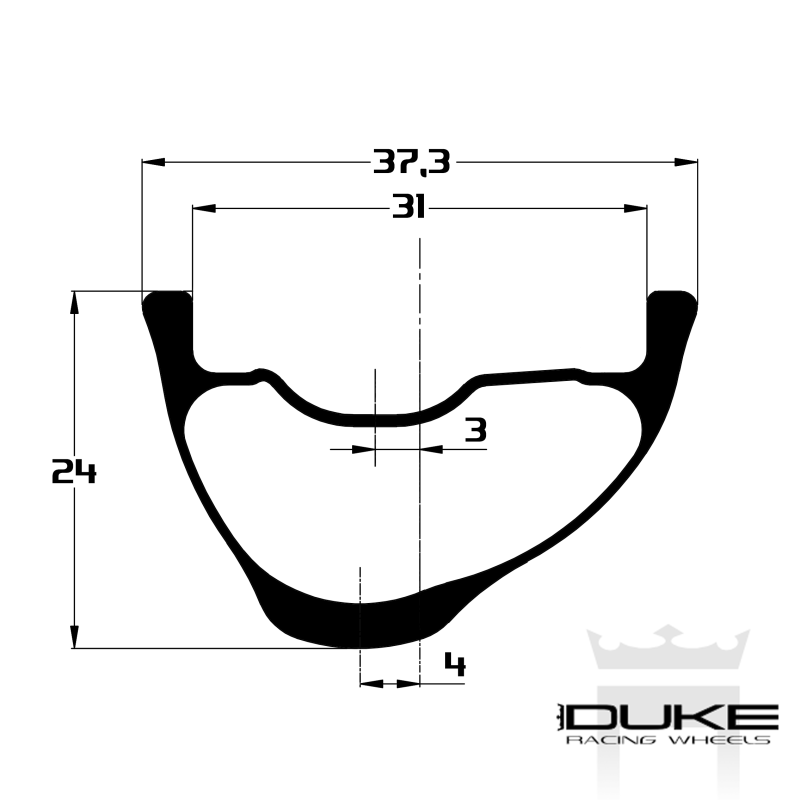

RIM PROFILE

ASYMMETRICAL

RIM HEIGHT (MM)

20

WEIGHT (G)

360G - LJ 31MM

SYSTEM MAX WEIGHT (KG)

115KG (30MM / 360G / 28 TROUS)

INSIDE WIDTH (MM)

31.0

TYPE OF BRAKING

DISC

MAX STRAIN (N)

1200.0

PRACTICE TYPE

XC
XC ENGAGED

NIPPLE POSITION

EXTERNAL

NIPPLE HEIGHT (MM)

16.0

TYPE OF TYRE

TUBELESS OU CHAMBRE À AIR

VALVE HEIGHT (MM)

34

TAPE WIDTH (MM)

32.0

MAX PRESSURE (BAR)

2.3B WITH 2.25" TYRE

ERD JANTE(S)

LJ 31 / 32" : 656

ETRTO (MM)

622.0

RIM OFFSET (MM)

4.0

MOUNTING WITH WASHERS

NO

POSITION

FRONT
REAR

TYRE SECTION RANGE

53MM 2,10" / 71MM 2,80"

RIM MODEL / WIDTH STICKERS

LUCKY JACK 31 / 54MM

STICKER TYPE

L54

RIM BRAND

JANTE DUKE

WARRANTY

3 YEARS

FINITION JANTE

UD PAINTLESS

INNER WIDTH / WEIGHT

30MM / 360G
