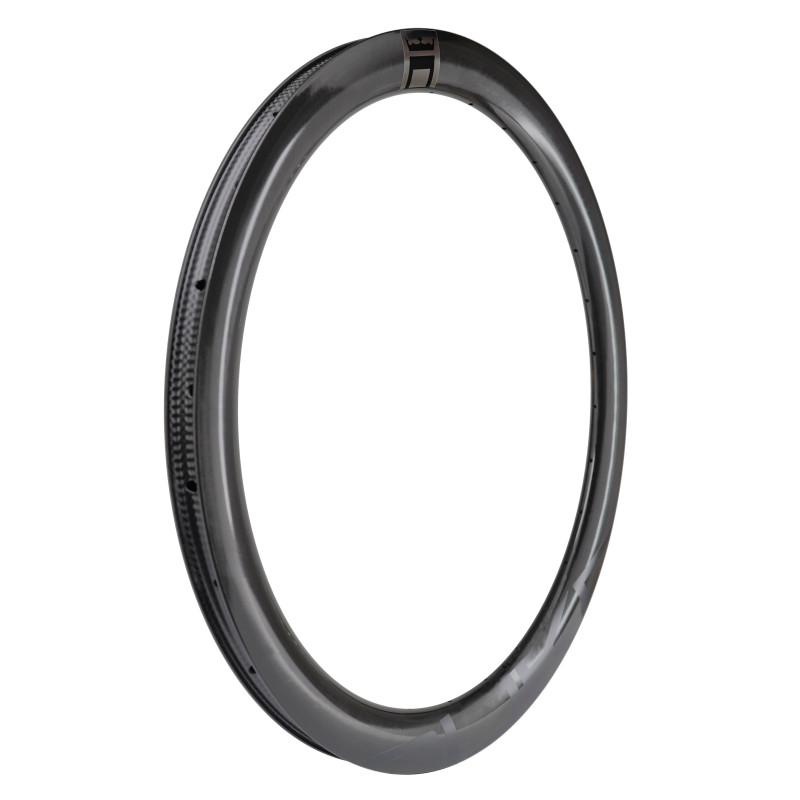

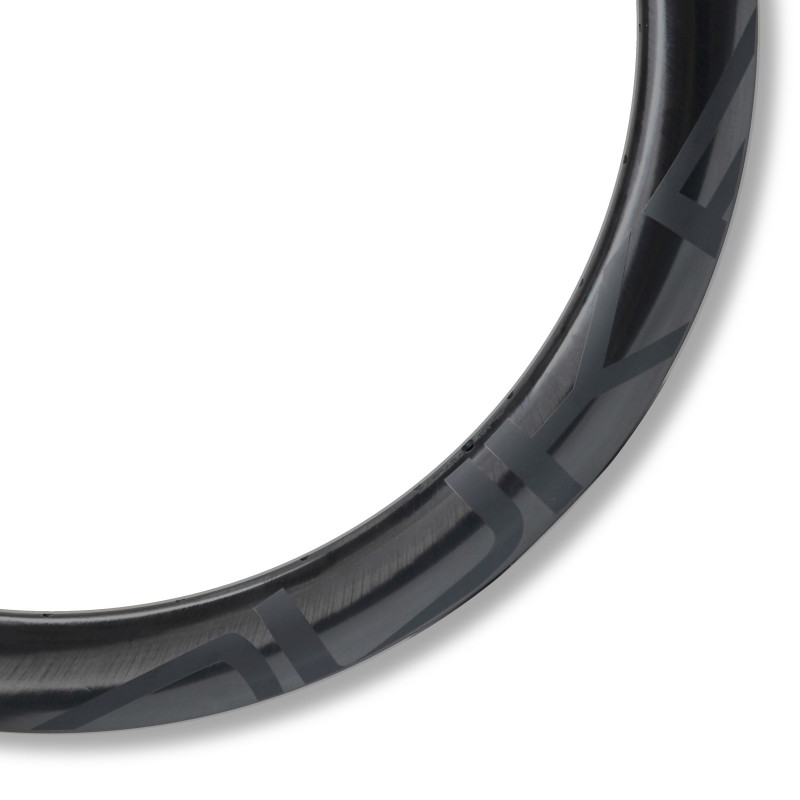

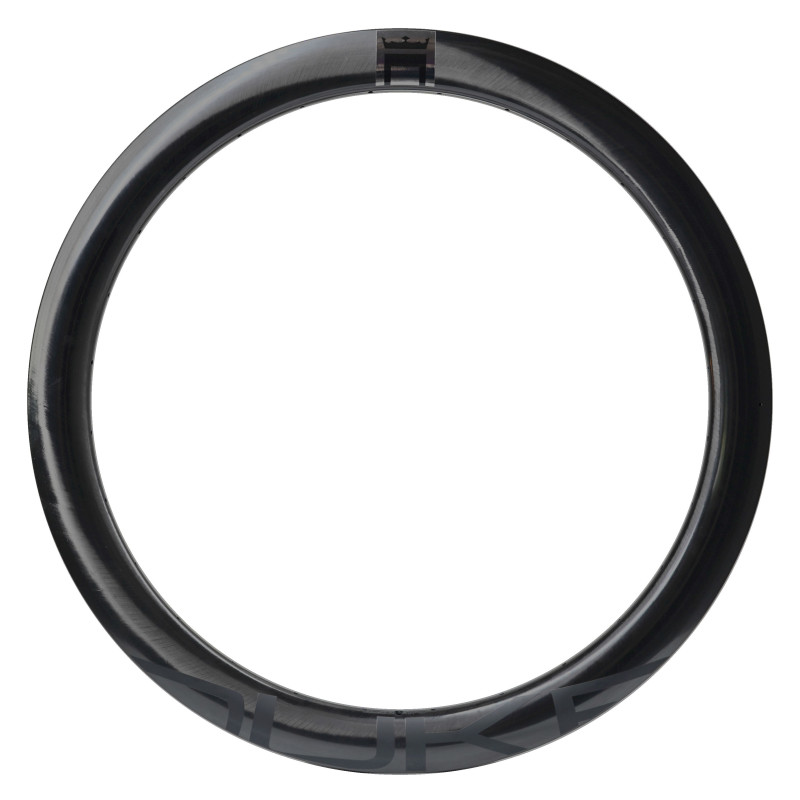

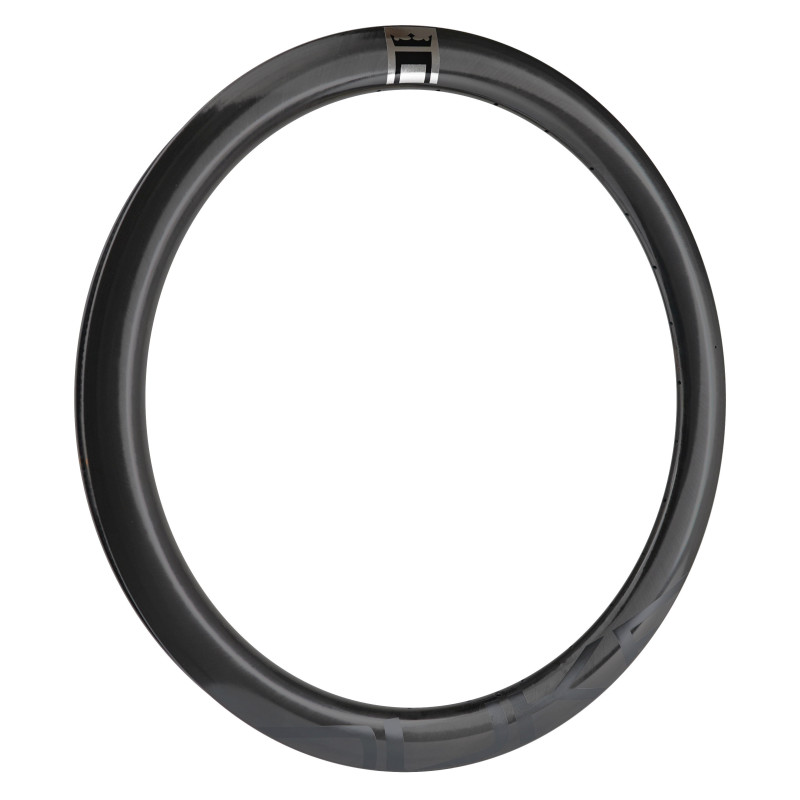

DUKE RIM BACCARA WRX 48 SLR2
The Aero Light
Baccara WRX 48 carbon rim is designed for cyclists demanding maximum aerodynamics while retaining notable lightness. Ideal for competitions, it stands out for its performance on rolling sections and guarantees increased inertia to maintain speed over long distances.
Duke Baccara WRX 48
Use: Sport / racing.
Terrain: Rather fast grounds, but with unexpected versatility thanks to their contained weight.
Key technical features:
- Rim height: 48 mm for optimum aerodynamics without sacrificing lightness.
- Internal width: 28 mm, allowing the installation of wide tires, guaranteeing comfort and performance.
Weight and price: coming soon.
The WRX 48 are distinguished by their ability to combine aerodynamics and lightness, perfect qualities for racers who demand speed and maneuverability.
Technology
-
SLR2 (Super light road series 2)
SLR2 (Super Light Road series 2)
A design optimized for the demands of road and gravel riding
- Aerospace-grade resin and optimized carbon fiber lay-up
- Up to 10% lighter and stronger than the previous SLR1 version
- Tuned vertical compliance for more comfort and responsiveness -
Hooked
Hooked
Hooked rim design
- Optimized for road and gravel tire pressures
- Ensures secure bead retention
- Wider internal width offers aerodynamic benefits -
DRC (Dynamic Response Comfort)
DRC (Dynamic Response Comfort)
Controlled vertical flex and rebound
- More dynamic handling during weight transfers and bermed corners
- Increased comfort on rough terrain
- Reduced energy loss, more speed and efficiency -
Width
Optimized Internal Width
Maximizes tire volume and performance
- Enables lower pressures without sacrificing rolling efficiency
- Controls tire deformation for greater stability
- Improves control and comfort on all terrains -
VFP (Varnish Free Process)
VFP (Varnish Free Process)
A varnish-free finish process
- Reduces VOC emissions and carbon dust during production
- More scratch-resistant surface
- Naturally glossy finish -
Offset
OFFSET
Asymmetrical spoke lacing
- Balances spoke tension on both sides
- Improves lateral stiffness, stability, and long-term durability
- No added weight -
AntiBurp
AntiBurp
Anti-burp and anti-debeading system
- Specially designed inner rim hooks lock the tire beads securely
- Eliminates air loss under heavy cornering or compression
- Prevents tire debeading, even in the event of a puncture -
Anti-pinch
AntiPinch
Anti-pinch rim bead design
- Prevents tire cuts from hard impacts
- Dissipates shock energy
- Allows low-pressure riding without pinch-flat risks -
Tubeless Ready
Tubeless Ready
Tubeless-compatible rim design
- Compatible with UST and Tubeless Ready standards
- Also compatible with tube-type (clincher) setups
Data sheet
- RIM MATERIAL
- CARBON
- RIM PROFILE
- ASYMMETRIC
- RIM HEIGHT (MM)
- 48
- SYSTEM MAX WEIGHT (KG)
- 125.0
- INSIDE WIDTH (MM)
- 28.0
- OUTER WIDTH (MM)
- 35.5
- TYPE OF BRAKING
- DISC
- MAX STRAIN (N)
- 1200.0
- PRACTICE TYPE
- BEACH RACE
GRAVEL BIKE
ROAD
ROAD E-BIKE
TANDEM ROAD
VAE GRAVEL - NIPPLE POSITION
- EXTERNAL
- NIPPLE HEIGHT (MM)
- 16.0
- TYPE OF TYRE
- TUBELESS OU CHAMBRE À AIR
- VALVE HEIGHT (MM)
- 63
- TAPE WIDTH (MM)
- 30.0
- MAX PRESSURE (BAR)
- 4B AVEC PNEU DE 38MM
- ERD JANTE(S)
- 546.0
- ETRTO (MM)
- 622.0
- RIM OFFSET (MM)
- 2.0
- MOUNTING WITH WASHERS
- NO
- POSITION
- FRONT
REAR - TYRE SECTION RANGE
- 36MM 1,40" / 61MM 2,40"
- STICKER TYPE
- B48
- AERO OPTIMIZED TYRE SIZE
- 36MM
- RIM BRAND
- JANTE DUKE
- WARRANTY
- 3 YEARS
Crash replacement
We offer a crash replacement programme for carbon wheels. In case of accidents or heavy falls, violent shocks can damage your rim and make it impossible to use. With our Crash Replacement offer we offer you a service that allows you to replace your rim under special conditions: You get a 50 percent discount on the price of the rim (UD SLS carbon) 40 percent (3k Carbon), as well as the parts and the disassembly/reassembly. This offer is valid (for life) for an unlimited period of time for DUKE carbon rims and is transferable in the event of sale of the wheels to a third party.
