DUKE RIM BACCARA WRX AERO 42 SLR2
The Racer
The Baccara WRX 42 rim is a high-performance carbon rim designed to maximise aerodynamics and speed. Ideal for competitions, it is aimed at cyclists looking for both performance and versatility.

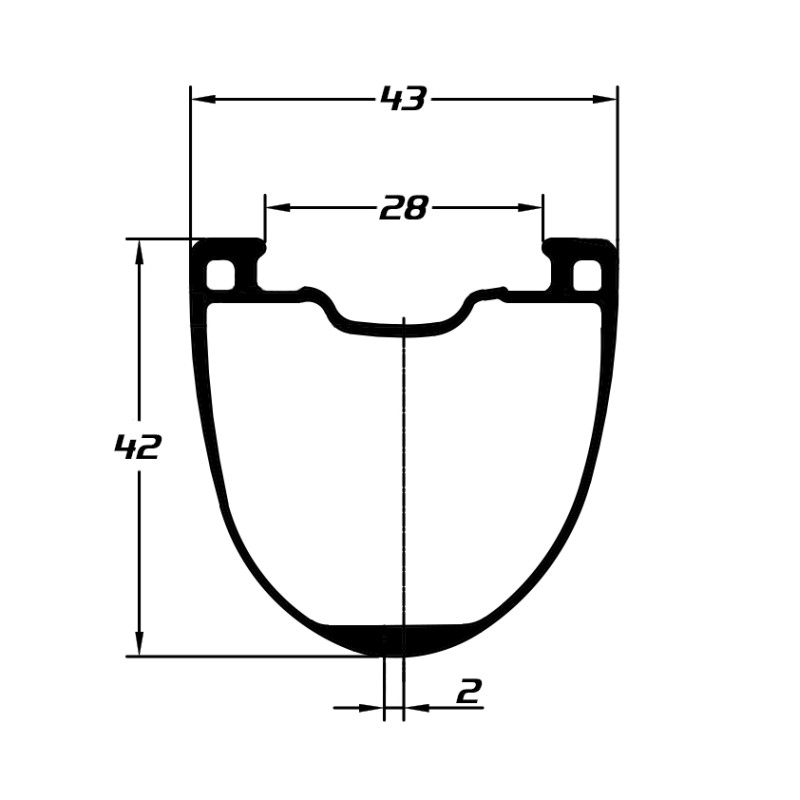

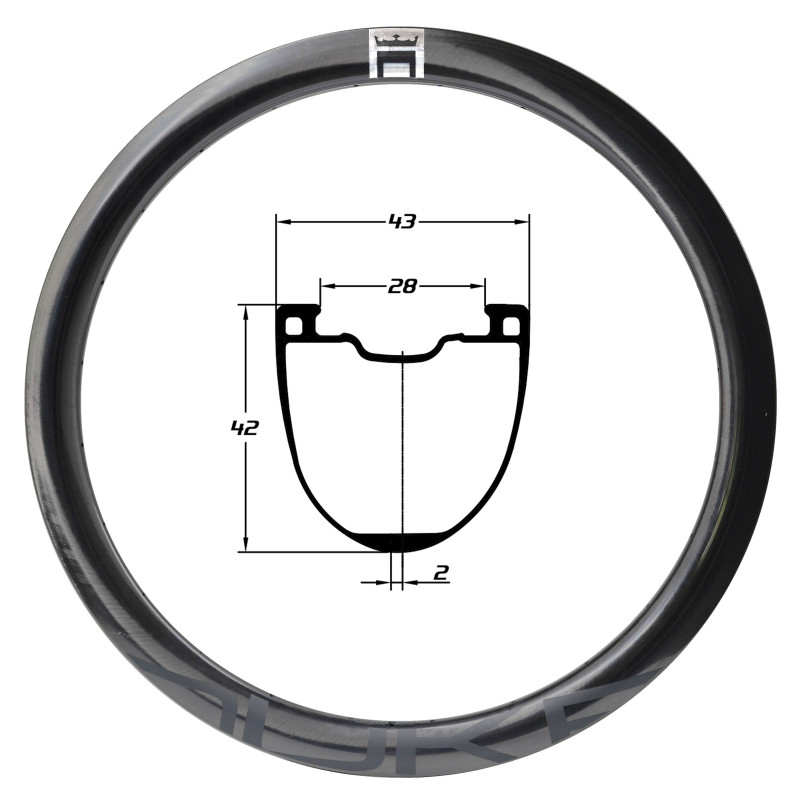

External width: 43 mm,
a key dimension for ensuring a smooth transition between the rim and tyre sidewalls, reducing aerodynamic turbulence. Its extra-wide "anti-pinch" flanges minimise the risk of punctures caused by pinching.
- Internal width: 28 mm, optimising the installation of wide tyres for a perfect balance between performance and comfort.
- Rim height: 42 mm, offering an aerodynamic profile while ensuring sufficient inertia to maintain the speed gained on flat terrain.
Recommended tyre widths are xx to xx, (tyre type or other).
Our advice
For an optimum compromise between lightness, aerodynamics and sensitivity to crosswinds, we recommend a mixed set-up with a WRX Aero 42 or WRX 42 at the front and a WRX 48 at the rear.
DUKE owns its manufacturing tools.
Technology
-
SLR2 (Super light road series 2)
SLR2 (Super Light Road series 2)
A design optimized for the demands of road and gravel riding
- Aerospace-grade resin and optimized carbon fiber lay-up
- Up to 10% lighter and stronger than the previous SLR1 version
- Tuned vertical compliance for more comfort and responsiveness -
Aero
AERO
Aerodynamic optimization through CFD (Computational Fluid Dynamics)
- Optimized tire-to-rim transition to reduce aerodynamic drag
- Greater stability in crosswinds
- Compatible with wide tires without compromising rolling efficiency -
Hooked
Hooked
Hooked rim design
- Optimized for road and gravel tire pressures
- Ensures secure bead retention
- Wider internal width offers aerodynamic benefits -
DRC (Dynamic Response Comfort)
DRC (Dynamic Response Comfort)
Controlled vertical flex and rebound
- More dynamic handling during weight transfers and bermed corners
- Increased comfort on rough terrain
- Reduced energy loss, more speed and efficiency -
Width
Optimized Internal Width
Maximizes tire volume and performance
- Enables lower pressures without sacrificing rolling efficiency
- Controls tire deformation for greater stability
- Improves control and comfort on all terrains -
VFP (Varnish Free Process)
VFP (Varnish Free Process)
A varnish-free finish process
- Reduces VOC emissions and carbon dust during production
- More scratch-resistant surface
- Naturally glossy finish -
Offset
OFFSET
Asymmetrical spoke lacing
- Balances spoke tension on both sides
- Improves lateral stiffness, stability, and long-term durability
- No added weight -
AntiBurp
AntiBurp
Anti-burp and anti-debeading system
- Specially designed inner rim hooks lock the tire beads securely
- Eliminates air loss under heavy cornering or compression
- Prevents tire debeading, even in the event of a puncture -
Anti-pinch
AntiPinch
Anti-pinch rim bead design
- Prevents tire cuts from hard impacts
- Dissipates shock energy
- Allows low-pressure riding without pinch-flat risks -
Tubeless Ready
Tubeless Ready
Tubeless-compatible rim design
- Compatible with UST and Tubeless Ready standards
- Also compatible with tube-type (clincher) setups
Data sheet
- RIM MATERIAL
- CARBON
- RIM PROFILE
- ASYMMETRICAL
- RIM HEIGHT (MM)
- 42
- SYSTEM MAX WEIGHT (KG)
- 125.0
- INSIDE WIDTH (MM)
- 28.0
- OUTER WIDTH (MM)
- 43.0
- TYPE OF BRAKING
- DISC
- MAX STRAIN (N)
- 1200.0
- PRACTICE TYPE
- BEACH RACE
GRAVEL BIKE
ROAD
ROAD E-BIKE
TANDEM ROAD
VAE GRAVEL - NIPPLE POSITION
- EXTERNAL
- NIPPLE HEIGHT (MM)
- 16.0
- TYPE OF TYRE
- TUBELESS OU CHAMBRE À AIR
- VALVE HEIGHT (MM)
- 57
- TAPE WIDTH (MM)
- 30.0
- MAX PRESSURE (BAR)
- 4B AVEC PNEU DE 38MM
- ERD JANTE(S)
- 558.0
- ETRTO (MM)
- 622.0
- RIM OFFSET (MM)
- 2.0
- MOUNTING WITH WASHERS
- NO
- POSITION
- FRONT
REAR - TYRE SECTION RANGE
- 40MM 1,55" / 61MM 2,40"
- STICKER TYPE
- B42
- AERO OPTIMIZED TYRE SIZE
- 42-44MM
- RIM BRAND
- JANTE DUKE
- WARRANTY
- 3 YEARS
Crash replacement
We offer a crash replacement programme for carbon wheels. In case of accidents or heavy falls, violent shocks can damage your rim and make it impossible to use. With our Crash Replacement offer we offer you a service that allows you to replace your rim under special conditions: You get a 50 percent discount on the price of the rim (UD SLS carbon) 40 percent (3k Carbon), as well as the parts and the disassembly/reassembly. This offer is valid (for life) for an unlimited period of time for DUKE carbon rims and is transferable in the event of sale of the wheels to a third party.
