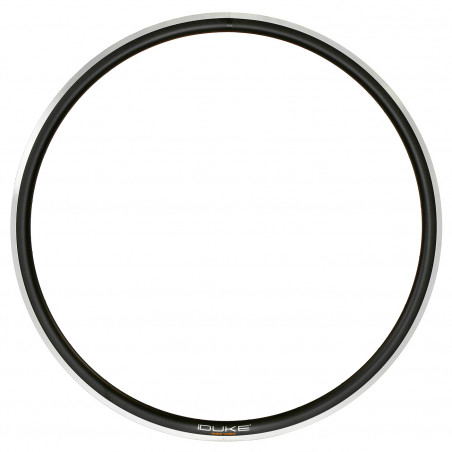

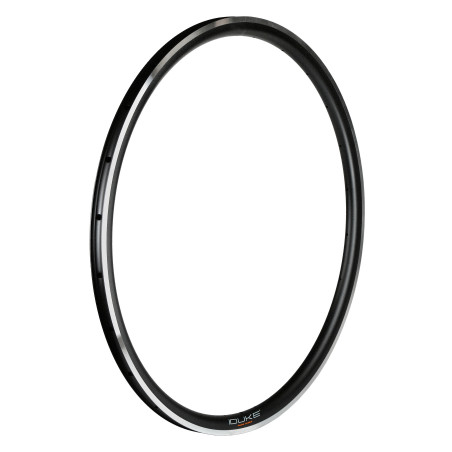

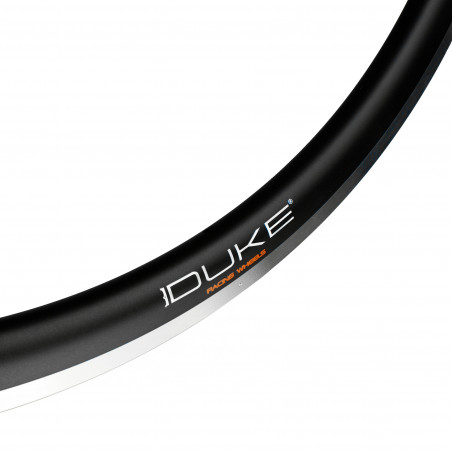

DUKE RIM ROAD RUNNER 30 Rb (RIM BRAKE)

DUKE aluminum rim. Designed for versatile use on all types of roads.
Variantes disponibles
480 g
€129.00 Tax included
17 In stock

Expected shipping date: 11/06/2025

Quantity

favorite_border favorite

DUKE ROAD RUNNER 30 ARTISANAL RIM

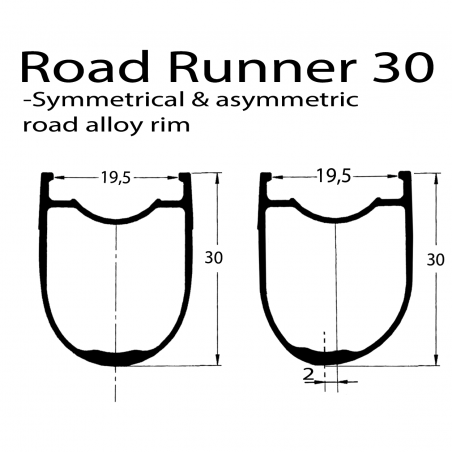

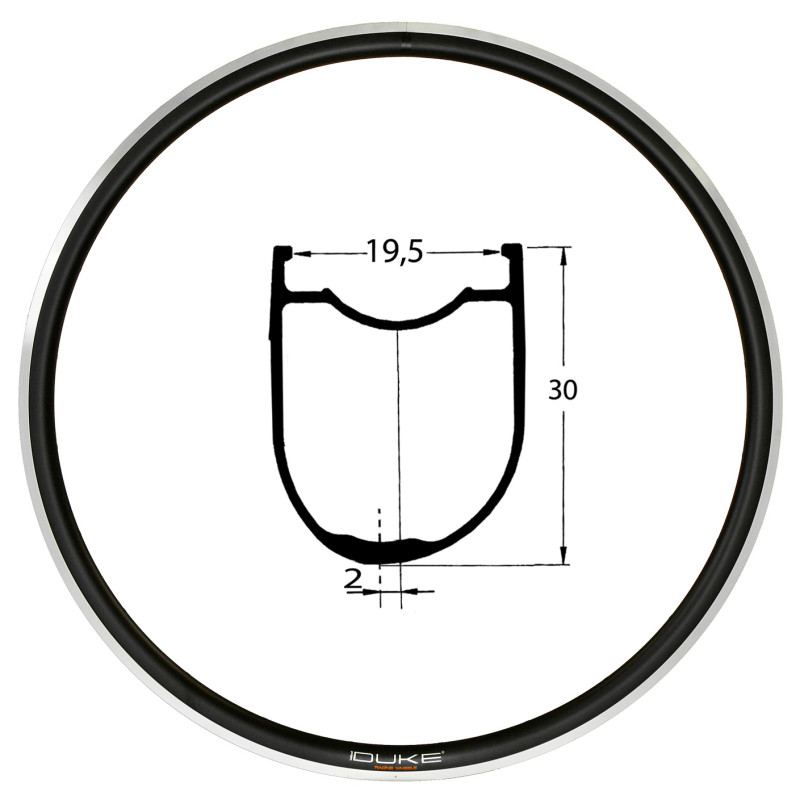

The DUKE Road runner 30 rim is designed, tested in France, DUKE is the exclusive owner of the manufacturing tools. The DUKE Road Rim Runner 30 Has a profile height of 23mm. Profile SYMMETRIC front and ASYMMETRIC rear: As the number of gears increases, The cassette-side flange of the hub is increasingly "pushed" towards the inside of the wheel have an asymetrical profil (2mm offset) Which makes it possible to increase the lateral stiffness of the wheel without gaining weight. The holes in the rim are off-centered, this makes it possible to close more the umbrella formed by the Spokes. Thus the spokes ensure a better maintenance of the rim and the lateral stiffness of the wheel is increased. Inner width 19,5mm. This gives more volume to the tires and improves efficiency, comfort and cornering grip. A wide rim also means that you can use finer, lighter tires while maintaining the comfort, softness and grip provided by a larger volume of air.

Technology

  • Hooked

    Hooked

    Hooked

    Hooked rim design
    - Optimized for road and gravel tire pressures
    - Ensures secure bead retention
    - Wider internal width offers aerodynamic benefits

  • Offset

    Offset

    OFFSET

    Asymmetrical spoke lacing
    - Balances spoke tension on both sides
    - Improves lateral stiffness, stability, and long-term durability
    - No added weight

  • AntiBurp

    AntiBurp

    Anti-burp and anti-debeading system
    - Specially designed inner rim hooks lock the tire beads securely
    - Eliminates air loss under heavy cornering or compression
    - Prevents tire debeading, even in the event of a puncture

  • Tubeless Ready

    Rayons Sapim

    Tubeless Ready

    Tubeless-compatible rim design
    - Compatible with UST and Tubeless Ready standards
    - Each rim comes with DUKE tubeless tape and valve
    - Also compatible with tube-type (clincher) setups

Data sheet

RIM MATERIAL
ALU
RIM PROFILE
ASYMMETRICAL
SYMMETRICAL
RIM HEIGHT (MM)
30
SYSTEM MAX WEIGHT (KG)
120
INSIDE WIDTH (MM)
19.5
TYPE OF BRAKING
BRAKE PADS
MAX STRAIN (N)
1100.0
PRACTICE TYPE
ROAD
TRACK
TRIATHLON&CLM
NIPPLE POSITION
EXTERNAL
NIPPLE HEIGHT (MM)
14.0
REINFORCED RIM
NO
TYPE OF TYRE
CLINCHER
TUBELESS
VALVE HEIGHT (MM)
44
TAPE WIDTH (MM)
22.0
MAX PRESSURE (BAR)
6.5B WITH 28MM TYRE
ERD JANTE(S)
RR30 : 581
ETRTO (MM)
622.0
RIM OFFSET (MM)
0.0
2.0
MOUNTING WITH WASHERS
RECOMMENDED SUP 90KG (PILLAR 7048)
POSITION
FRONT
REAR
TYRE SECTION RANGE
25MM 1,00" / 46MM 1,80"
DELIVERED WITH PADS
YES
STICKER TYPE
L50
WARRANTY
2 YEARS
Brand DUKE RACING WHEELS
