DUKE RIM WORLD RUNNER CARBON 35 SLR2 650b
Carbon rim Tubeless ready for brake disc. Made Gravel.
DUKE WORLD RUNNER CARBON 35 SLR2* 650B

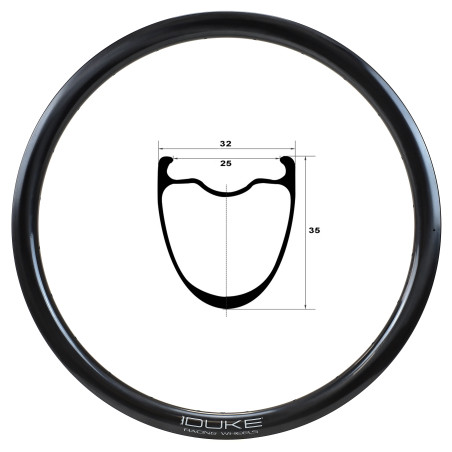

The DUKE World Runner Carbon has a profile height of 35mm. Width between 25mm large brackets: This gives more volume to the tires and thus improves efficiency, Comfort and grip in turns. A wide rim also means being able to use the finer and lighter tires while maintaining comfort, The softness and grip provided by a larger volume of air. More SLR2 Factory Process
All our carbon MTB rims now benefit from the manufacturing process tested and approved by the Super Light Route 2, which offers a 15% gain in rim’s weight.
This manufacturing process goes even further today as it is now made under dust-free laboratory and no longer requires sanding nor painting.
SLR2 products have an excellent aesthetic appearance, right out of the mold.
As no longer painted, the rims can not be scratched.
Impact resistance is not left out, since it is also improved by 20%.
SLR2 rims are built from UD carbon fiber only.
(*R = Road)
Technology
-
SLR2 (Super light road series 2)
SLR2 (Super Light Road series 2)
A design optimized for the demands of road and gravel riding
- Aerospace-grade resin and optimized carbon fiber lay-up
- Up to 10% lighter and stronger than the previous SLR1 version
- Tuned vertical compliance for more comfort and responsiveness -
Hooked
Hooked
Hooked rim design
- Optimized for road and gravel tire pressures
- Ensures secure bead retention
- Wider internal width offers aerodynamic benefits -
DRC (Dynamic Response Comfort)
DRC (Dynamic Response Comfort)
Controlled vertical flex and rebound
- More dynamic handling during weight transfers and bermed corners
- Increased comfort on rough terrain
- Reduced energy loss, more speed and efficiency -
Width
Optimized Internal Width
Maximizes tire volume and performance
- Enables lower pressures without sacrificing rolling efficiency
- Controls tire deformation for greater stability
- Improves control and comfort on all terrains -
VFP (Varnish Free Process)
VFP (Varnish Free Process)
A varnish-free finish process
- Reduces VOC emissions and carbon dust during production
- More scratch-resistant surface
- Naturally glossy finish -
Offset
OFFSET
Asymmetrical spoke lacing
- Balances spoke tension on both sides
- Improves lateral stiffness, stability, and long-term durability
- No added weight -
Tubeless Ready
Tubeless Ready
Tubeless-compatible rim design
- Compatible with UST and Tubeless Ready standards
- Each rim comes with DUKE tubeless tape and valve
- Also compatible with tube-type (clincher) setups
Data sheet
- RIM MATERIAL
- CARBON
- RIM PROFILE
- SYMMETRIC
- RIM HEIGHT (MM)
- 35
- SYSTEM MAX WEIGHT (KG)
- 135.0
- INSIDE WIDTH (MM)
- 25.0
- OUTER WIDTH (MM)
- 31.5
- TYPE OF BRAKING
- DISC
- MAX STRAIN (N)
- 1200.0
- PRACTICE TYPE
- GRAVEL BIKE
ROAD E-BIKE
TANDEM ROAD
VAE GRAVEL - NIPPLE POSITION
- EXTERNAL
- NIPPLE HEIGHT (MM)
- 16.0
- TYPE OF TYRE
- TUBELESS OU CHAMBRE À AIR
- VALVE HEIGHT (MM)
- 51
- TAPE WIDTH (MM)
- 28.0
- MAX PRESSURE (BAR)
- 4B WITH 40MM TYRE
- ERD JANTE(S)
- 535.0
- ETRTO (MM)
- 584.0
- MOUNTING WITH WASHERS
- NO
- POSITION
- FRONT
REAR - TYRE SECTION RANGE
- 28MM 1,10" / 61MM 2,40"
- STICKER TYPE
- H36D
- RIM / STICKERS HEIGHT
- WORLD RUNNER CARBON 35 / 36MM
- AERO OPTIMIZED TYRE SIZE
- 30MM
- RIM BRAND
- JANTE DUKE
- WARRANTY
- 3 YEARS
