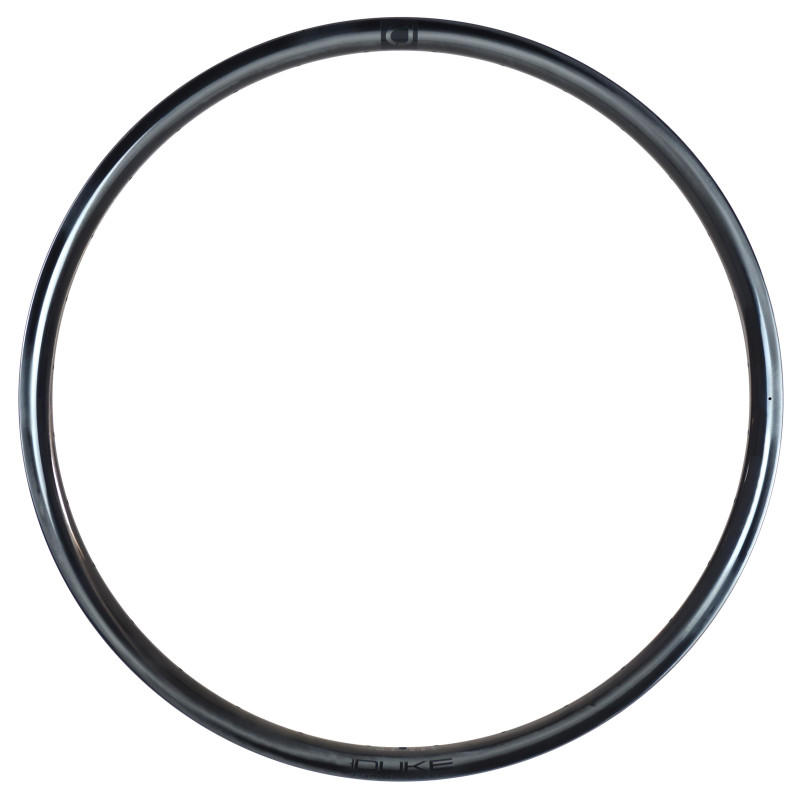

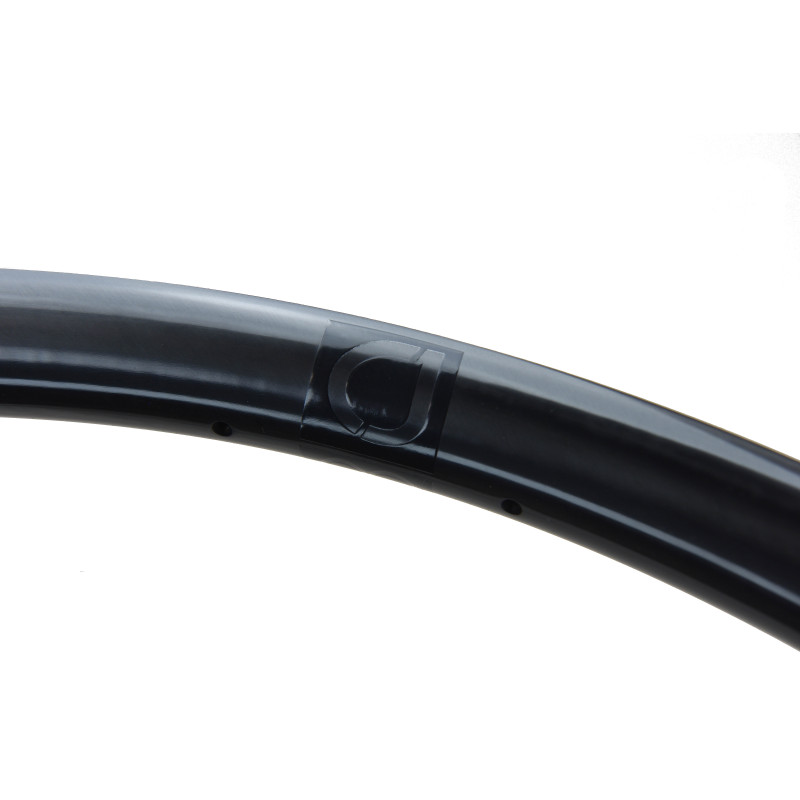

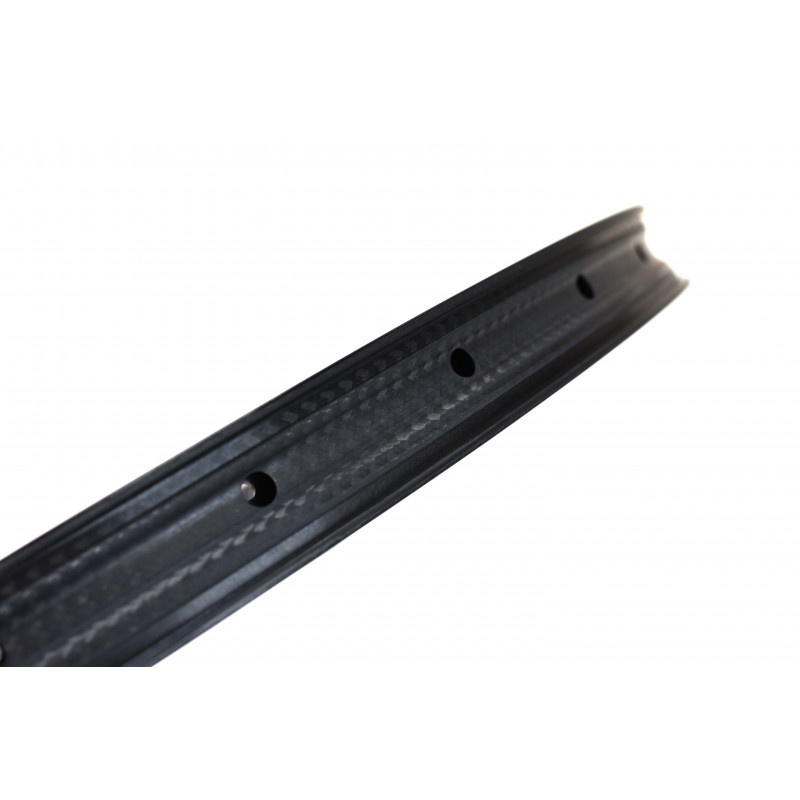

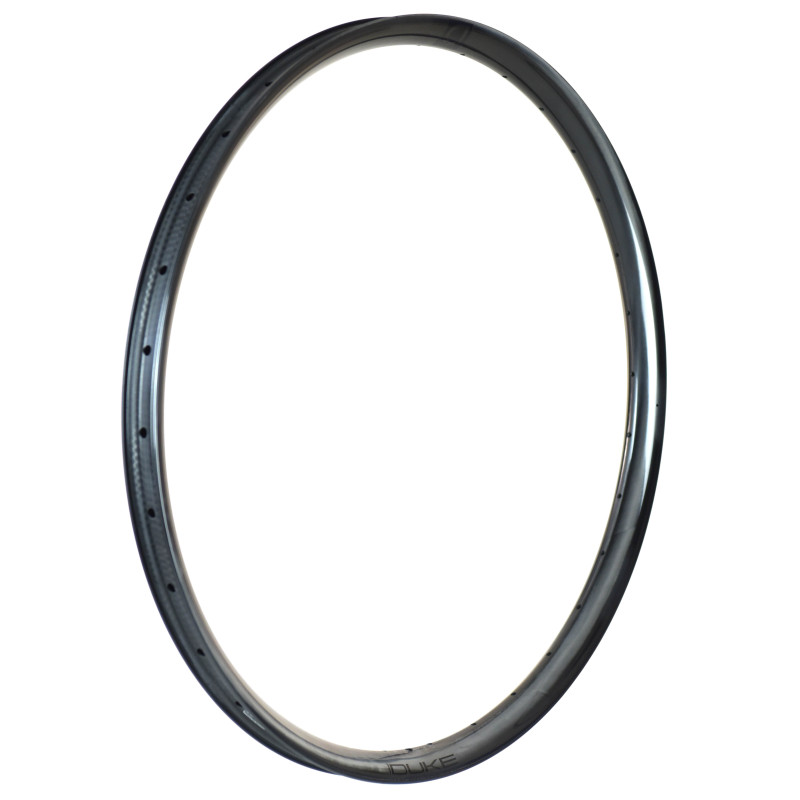

DUKE RIM CRAZY JACK SLS4
Carbon rim for All Mountain
JANTE DUKE CRAZY JACK SLS4

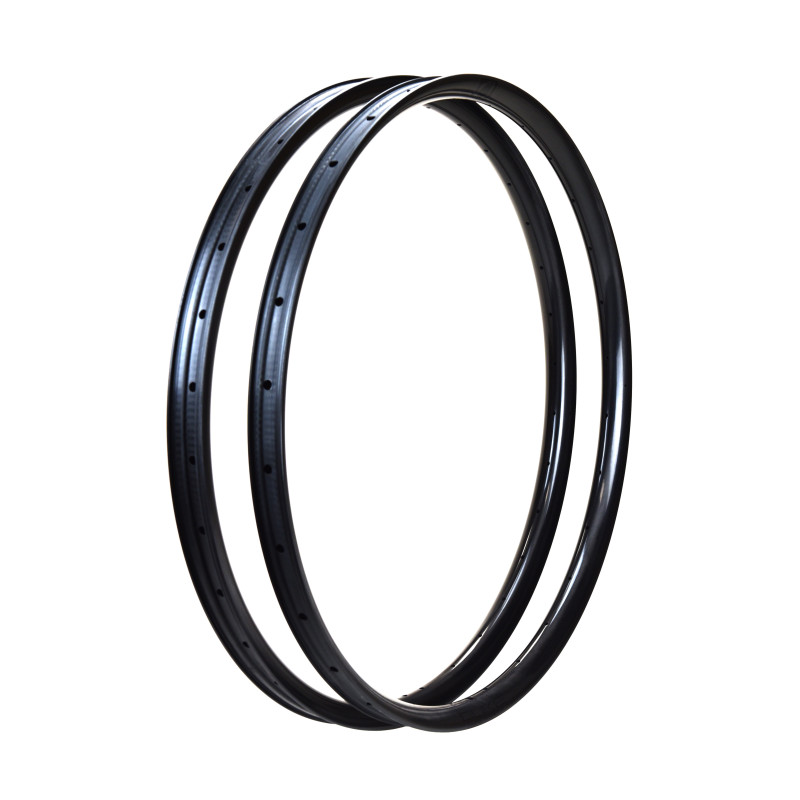

Pair of carbon wheels for All Mountain and Enduro use. Its large width optimizes the behavior of the tire and thus promotes the efficiency,

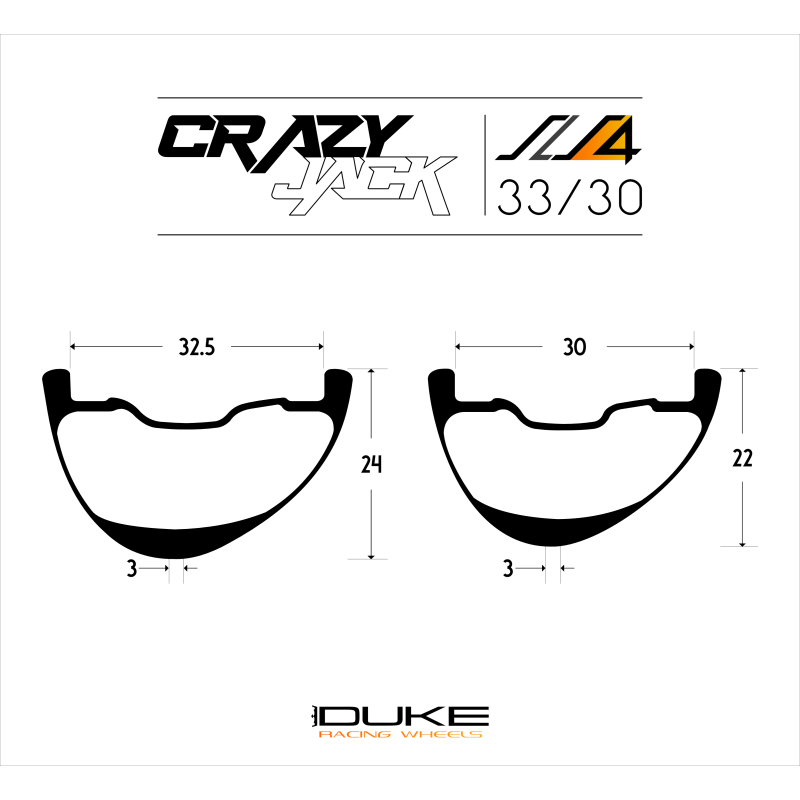

Comfort and grip thanks to a larger volume of air. It offers unrivaled lateral stiffness / weight ratio in its class and provides unusual sensations. Designed, developed and tested in France, The DUKE Crazy Jack in carbon has an ASYMMETRICAL profile (offset of 3 mm) which allows to increase the lateral stiffness of the wheel without gaining weight. The internal width between the hooks / sides is 32,5 mm. This gives more volume to the tires and improves efficiency, comfort and grip in turns.A wide rim also means that you can use finer, lighter tires while maintaining the comfort, softness and grip provided by a larger volume of air. Hookless design: the robustness of the rim is superior to that of a carbon rim with hooks. This technology has been used successfully on our rims since 2011. The height of the rim edge for 2015 is reduced by 1mm to further limit any risk of contact with the ground. Lateral stiffness improved by 40% compared to the previous version. Impact-resistant even on the most brittle ground: improved impact energy absorption of more than 50% compared to the previous model. Anti-burp system: the heel of the tire is held in position whatever its pressure, no risk of "unseating". Tubeless or inner tube.
In 2019, MTB rims profiles are differentiated as we do not ask the rims the same qualities while riding :
A front wheel must give grip, be light, stiff and handy.
A rear wheel must be more comfortable, tronger and offer more efficiency.
Thus the front and rear wheels have different profiles and lay-ups.
In collaboration with Rémy and Julien Absalon, the 6TERS front and rear profiles complement each other for a greater efficiency in the trails.
Many of you are aware of different needs because you are already using different section tires at front and rear wheel.

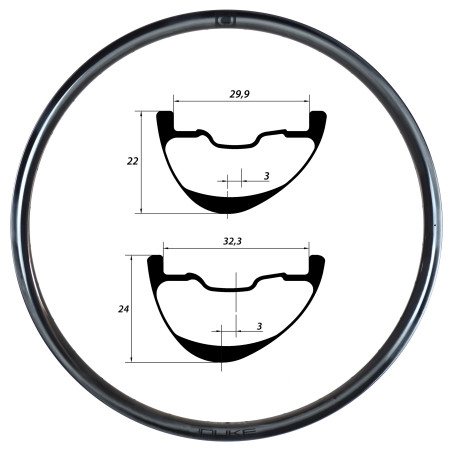

The Duke 6TERS* concept offers a wider front rim than the rear rim for more grip and stiffness. Its weight is optimized for robustness.
The rear profile is reworked with a reduced section, with a new carbon fiber layer to improve compliance and increase the impact resistance, the constraints being much more important on the back wheel.
SLS3 Factory Process ‘21
All our carbon MTB rims now benefit from the manufacturing process tested and approved by the 2018 Super Light Series, which offers gain in rim’s weight.
This manufacturing process goes even further today as it is now made under dust-free laboratory and no longer requires sanding nor painting.
SLS4 products have an excellent aesthetic appearance, right out of the mold.
As no longer painted, the rims can not be scratched.
Impact resistance is not left out, since it is also improved by 10%.
SLS4 rims are built from UD carbon fiber only.
Anti-Pinch
Rim’s sidewalls are thickened to prevent cut of tires during impacts.
Technology
-
SLS4 (Super light series 4)
SLS4 (Super Light Series 4)
An exclusive manufacturing process combining an optimized carbon fiber lay-up with aerospace-grade resin
- 10% lighter than the previous SLS3 generation
- More controlled vertical compliance for enhanced ride dynamics
- Better vibration filtering for improved comfort and control -
DRC (Dynamic Response Comfort)
DRC (Dynamic Response Comfort)
Controlled vertical flex and rebound
- More dynamic handling during weight transfers and bermed corners
- Increased comfort on rough terrain
- Reduced energy loss, more speed and efficiency -
Width
Optimized Internal Width
Maximizes tire volume and performance
- Enables lower pressures without sacrificing rolling efficiency
- Controls tire deformation for greater stability
- Improves control and comfort on all terrains -
VFP (Varnish Free Process)
VFP (Varnish Free Process)
A varnish-free finish process
- Reduces VOC emissions and carbon dust during production
- More scratch-resistant surface
- Naturally glossy finish -
Offset
OFFSET
Asymmetrical spoke lacing
- Balances spoke tension on both sides
- Improves lateral stiffness, stability, and long-term durability
- No added weight -
6Ters
6TERS
Differentiated internal rim widths for the front and rear wheels
- Wider front rim increases grip, handling, and control
- Narrower rear rim for better strength, stability, and efficiency
- Developed in partnership with leading XC race teams -
Hookless
HOOKLESS
Hookless rim design
- Lighter than traditional hooked rims
- Increases the tire’s internal air volume, boosting comfort and grip at lower pressures
- Proven DUKE technology since 2011 -
AntiBurp
AntiBurp
Anti-burp and anti-debeading system
- Specially designed inner rim hooks lock the tire beads securely
- Eliminates air loss under heavy cornering or compression
- Prevents tire debeading, even in the event of a puncture -
Anti-pinch
AntiPinch
Anti-pinch rim bead design
- Prevents tire cuts from hard impacts
- Dissipates shock energy
- Allows low-pressure riding without pinch-flat risks -
Tubeless Ready
Tubeless Ready
Tubeless-compatible rim design
- Compatible with UST and Tubeless Ready standards
- Also compatible with tube-type (clincher) setups
Data sheet
- RIM MATERIAL
- CARBON
- RIM PROFILE
- ASYMMETRICAL
- RIM HEIGHT (MM)
- 22
24 - SYSTEM MAX WEIGHT (KG)
- 120.0
- INSIDE WIDTH (MM)
- 30.0
32.5 - TYPE OF BRAKING
- DISC
- MAX STRAIN (N)
- 1200.0
- PRACTICE TYPE
- ALL MOUNTAIN E-BIKE
AM
VAE XC
XC ENGAGED - NIPPLE POSITION
- EXTERNAL
- NIPPLE HEIGHT (MM)
- 16.0
- TYPE OF TYRE
- TUBELESS OU CHAMBRE À AIR
- VALVE HEIGHT (MM)
- 44
- TAPE WIDTH (MM)
- 30.0
34.0 - MAX PRESSURE (BAR)
- 2,1B AVEC PNEU EN 2,40"
- ERD JANTE(S)
- CJ 30 : 600
CJ 33 : 596 - ETRTO (MM)
- 622.0
- RIM OFFSET (MM)
- 3.0
- MOUNTING WITH WASHERS
- NO
- POSITION
- FRONT
REAR - TYRE SECTION RANGE
- 53MM 2,10" / 71MM 2,80"
58MM 2,30" / 76MM 3,00" - STICKER TYPE
- L58
- RIM BRAND
- JANTE DUKE
- WARRANTY
- 3 YEARS
- FINITION JANTE
- UD PAINTLESS
Crash replacement
We offer a crash replacement programme for carbon wheels. In case of accidents or heavy falls, violent shocks can damage your rim and make it impossible to use. With our Crash Replacement offer we offer you a service that allows you to replace your rim under special conditions: You get a 50 percent discount on the price of the rim (UD SLS carbon) 40 percent (3k Carbon), as well as the parts and the disassembly/reassembly. This offer is valid (for life) for an unlimited period of time for DUKE carbon rims and is transferable in the event of sale of the wheels to a third party.
