DUKE RIM LUCKY STAR ULTRA 28 :

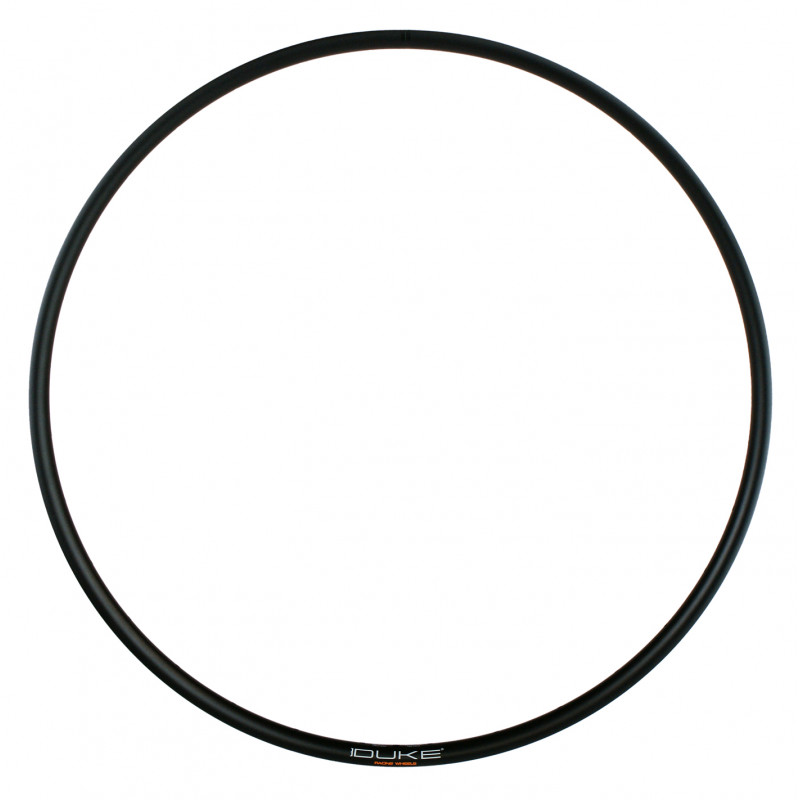

The Lucky Star Ultra is a lightweight aluminum rim with a large internal width of 28mm for pure XC use. It is characterised by its unrivalled stiffness/weight and strength/weight ratios, thanks to its profile and Dynamal aluminium.

Variantes disponibles
399 g
€134.00 Tax included
96 In stock

Expected shipping date: 29/09/2025

Quantity

favorite_border favorite

Must be mounted with Pillar PW7048 washers. Sold with washers.

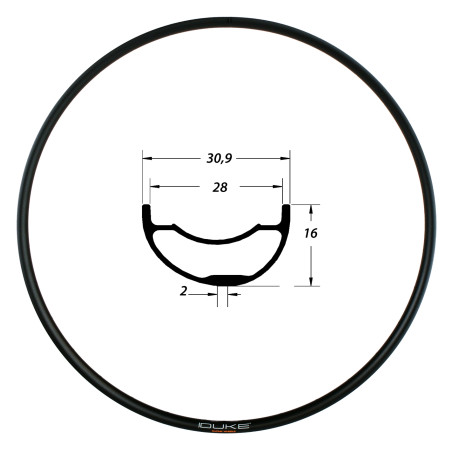

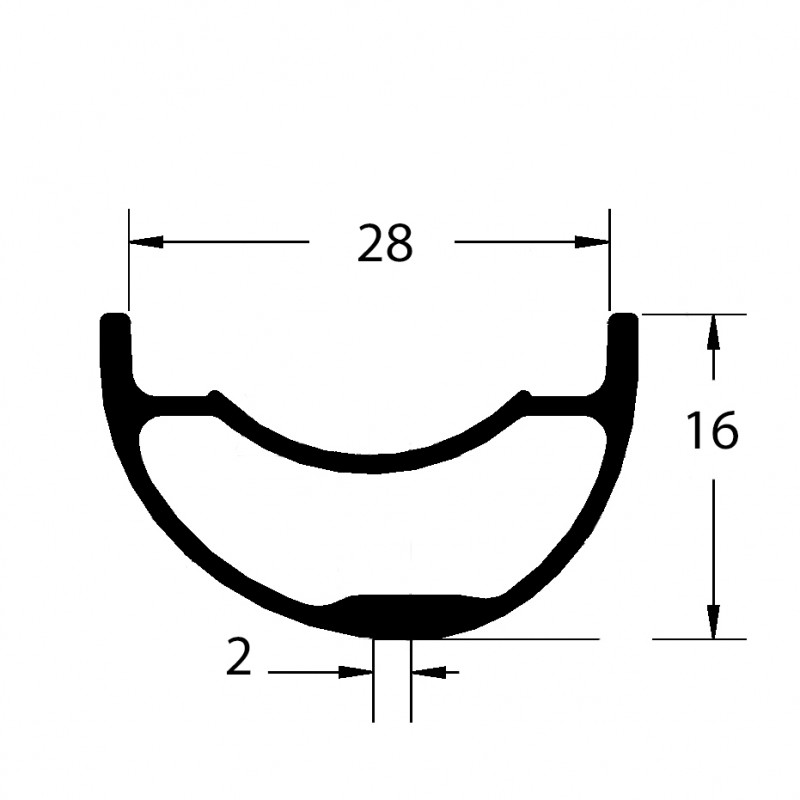

This rim inaugurates a new modern geometry lower and wider with an asymmetric profile and hookless walls. The rim holes are off-center (offset) and oriented. The offset makes a better spokes brace angle. The rim is more stable and the lateral stiffness of the wheel is increased. The spoke tensions between the two sides are more balanced, which guarantees a better durability of the wheel. The hookless rim walls allow rim reinforcement and weight reduction. Anti-burp system: the tire bead is kept in position whatever its pressure, no risk of air loss in the corners. DUKE owns its manufacturing tools. Technologies: Ultra, Anti-burp; Asymetric; Hookless; Dynamal; Oriented spoke holes; TLR; Lucky; Star; Duke french brand

Technology

  • Width

    Largeur interne optimisée

    Optimized Internal Width

    Maximizes tire volume and performance
    - Enables lower pressures without sacrificing rolling efficiency
    - Controls tire deformation for greater stability
    - Improves control and comfort on all terrains

  • Offset

    Offset

    OFFSET

    Asymmetrical spoke lacing
    - Balances spoke tension on both sides
    - Improves lateral stiffness, stability, and long-term durability
    - No added weight

  • Hookless

    Hookless

    HOOKLESS

    Hookless rim design
    - Lighter than traditional hooked rims
    - Increases the tire’s internal air volume, boosting comfort and grip at lower pressures
    - Proven DUKE technology since 2011

  • AntiBurp

    AntiBurp

    Anti-burp and anti-debeading system
    - Specially designed inner rim hooks lock the tire beads securely
    - Eliminates air loss under heavy cornering or compression
    - Prevents tire debeading, even in the event of a puncture

  • Tubeless Ready

    Rayons Sapim

    Tubeless Ready

    Tubeless-compatible rim design
    - Compatible with UST and Tubeless Ready standards
    - Also compatible with tube-type (clincher) setups

Data sheet

RIM MATERIAL
ALU
RIM PROFILE
ASYMMETRIC
RIM HEIGHT (MM)
16
SYSTEM MAX WEIGHT (KG)
95.0
INSIDE WIDTH (MM)
28.0
TYPE OF BRAKING
DISC
MAX STRAIN (N)
1050.0
PRACTICE TYPE
XC
NIPPLE POSITION
EXTERNAL
NIPPLE HEIGHT (MM)
16.0
REINFORCED RIM
NO
TYPE OF TYRE
TUBELESS OU CHAMBRE À AIR
VALVE HEIGHT (MM)
34
TAPE WIDTH (MM)
30.0
MAX PRESSURE (BAR)
2.8B WITH 2.25" TYRE
ERD JANTE(S)
LSU 28 29" : 605,5
ETRTO (MM)
622.0
RIM OFFSET (MM)
2.0
MOUNTING WITH WASHERS
YES (PILLAR 7048)
POSITION
FRONT
REAR
TYRE SECTION RANGE
42MM 1,65" / 64MM 2,50"
STICKER TYPE
L45
RIM BRAND
JANTE DUKE
WARRANTY
2 YEARS
