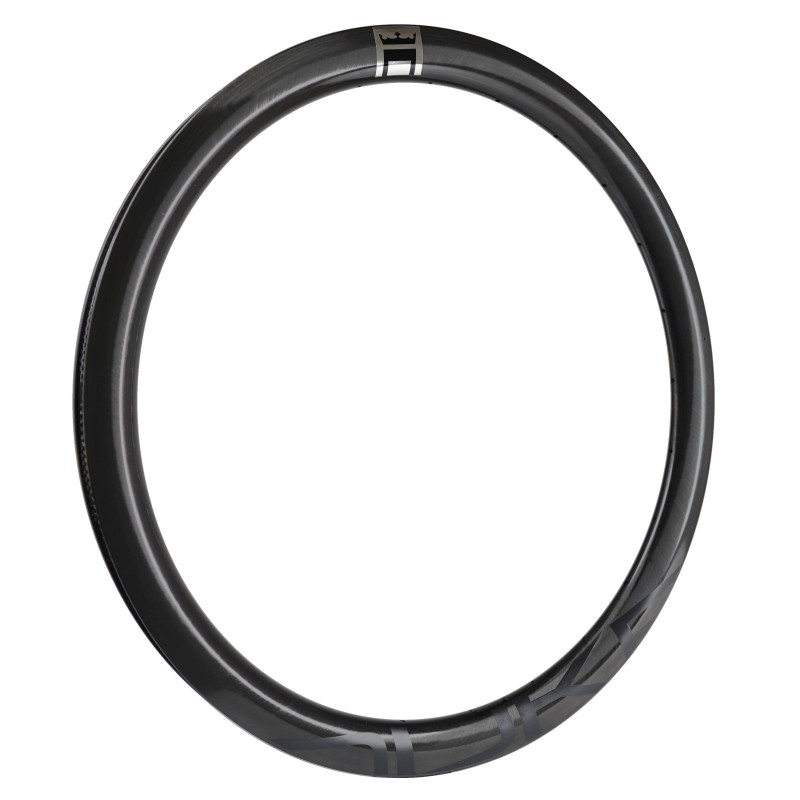

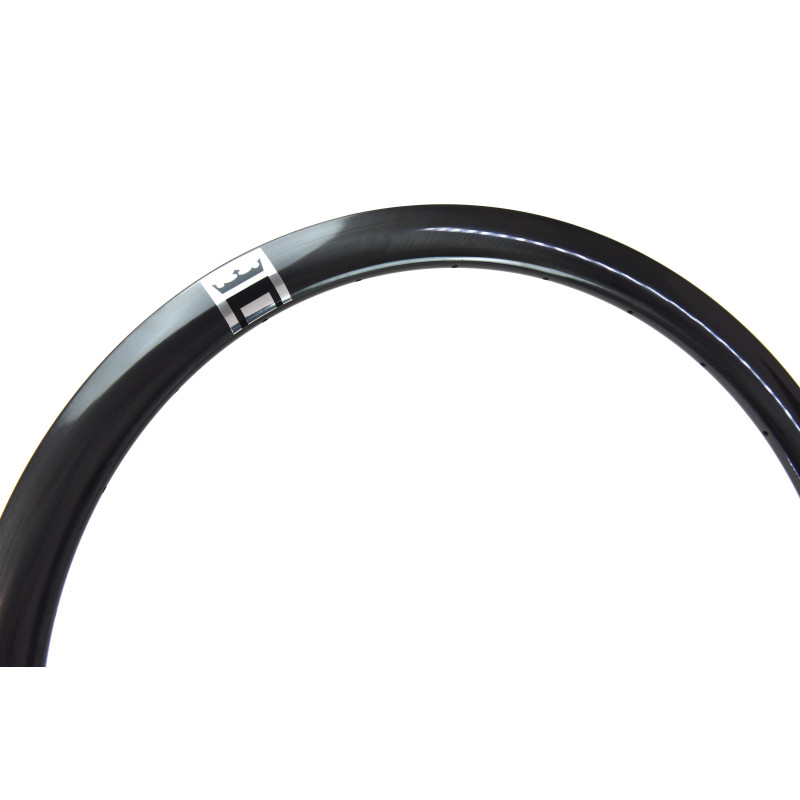

DUKE RIM BACCARA X 42 SLR2

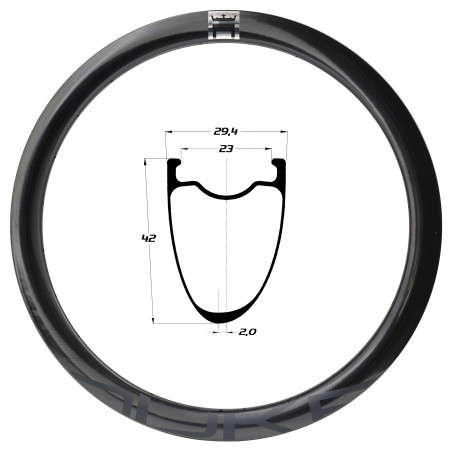

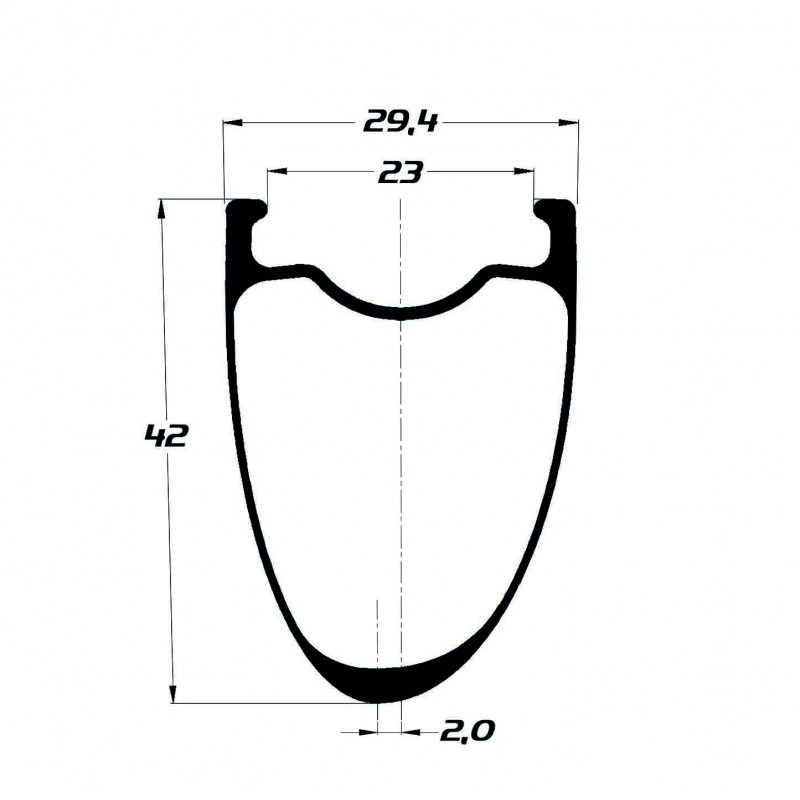

The Baccara X 42 are carbon rims suitable for road, long distance road & competition use, UCI APPROVED. Versatile on all types of roads and ways, its internal width is 23mm for a height of 42mm.
Available for disc brakes. SLR2 technology, weight reduced by 50g. This process also allows a better filtration of vibrations. The rim profile has been redesigned to improve its aerodynamics and stability in all wind conditions.
The outer width is increased to 29.4mm, has a new UV shape and reduces aerodynamic drag.

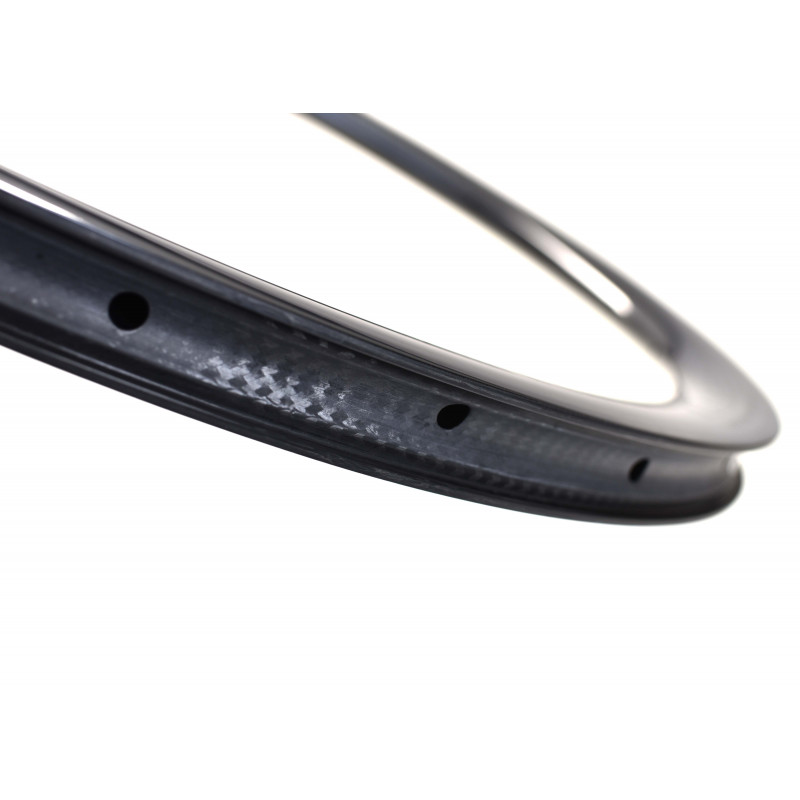

The rim holes are off-centered (2mm offset), which allows to close more the spokes umbrella. This makes the rim more stable and increases the lateral stiffness of the wheel. The spoke tensions between the two layers are more balanced, which guarantees a better durability of the wheel.
So more stiffness and more durability. The wider 23mm hook width gives more volume to the tires and improves comfort and grip without losing performance.Recommended tire widths are 28mm to 53mm, tubeless or tubetype.
DUKE owns its manufacturing tools.
Technology
-
SLR2 (Super light road series 2)
SLR2 (Super Light Road series 2)
A design optimized for the demands of road and gravel riding
- Aerospace-grade resin and optimized carbon fiber lay-up
- Up to 10% lighter and stronger than the previous SLR1 version
- Tuned vertical compliance for more comfort and responsiveness -
Aero
AERO
Aerodynamic optimization through CFD (Computational Fluid Dynamics)
- Optimized tire-to-rim transition to reduce aerodynamic drag
- Greater stability in crosswinds
- Compatible with wide tires without compromising rolling efficiency -
Hooked
Hooked
Hooked rim design
- Optimized for road and gravel tire pressures
- Ensures secure bead retention
- Wider internal width offers aerodynamic benefits -
DRC (Dynamic Response Comfort)
DRC (Dynamic Response Comfort)
Controlled vertical flex and rebound
- More dynamic handling during weight transfers and bermed corners
- Increased comfort on rough terrain
- Reduced energy loss, more speed and efficiency -
Width
Optimized Internal Width
Maximizes tire volume and performance
- Enables lower pressures without sacrificing rolling efficiency
- Controls tire deformation for greater stability
- Improves control and comfort on all terrains -
VFP (Varnish Free Process)
VFP (Varnish Free Process)
A varnish-free finish process
- Reduces VOC emissions and carbon dust during production
- More scratch-resistant surface
- Naturally glossy finish -
Offset
OFFSET
Asymmetrical spoke lacing
- Balances spoke tension on both sides
- Improves lateral stiffness, stability, and long-term durability
- No added weight -
Tubeless Ready
Tubeless Ready
Tubeless-compatible rim design
- Compatible with UST and Tubeless Ready standards
- Also compatible with tube-type (clincher) setups
Data sheet
- RIM MATERIAL
- CARBON
- RIM PROFILE
- ASYMMETRIC
- RIM HEIGHT (MM)
- 42
- SYSTEM MAX WEIGHT (KG)
- 120.0
- INSIDE WIDTH (MM)
- 23.0
- OUTER WIDTH (MM)
- 29.5
- TYPE OF BRAKING
- DISC
- MAX STRAIN (N)
- 1200.0
- PRACTICE TYPE
- CX
GRAVEL BIKE
MOUNTAIN
ROAD
ROAD E-BIKE
TANDEM ROAD
TRIATHLON&CLM
VAE GRAVEL - NIPPLE POSITION
- EXTERNAL
- NIPPLE HEIGHT (MM)
- 16.0
- TYPE OF TYRE
- TUBELESS OU CHAMBRE À AIR
- VALVE HEIGHT (MM)
- 57
- TAPE WIDTH (MM)
- 26.0
- MAX PRESSURE (BAR)
- 5,4B AVEC PNEU EN 32MM
- ERD JANTE(S)
- 558.0
- ETRTO (MM)
- 622.0
- RIM OFFSET (MM)
- 2.0
- MOUNTING WITH WASHERS
- NO
- POSITION
- FRONT
REAR - TYRE SECTION RANGE
- 25MM 1,00" / 53MM 2,10"
- STICKER TYPE
- B42
- AERO OPTIMIZED TYRE SIZE
- 28MM
- RIM BRAND
- JANTE DUKE
- WARRANTY
- 3 YEARS
- HOMOLOGUÉ UCI
- OUI
Crash replacement
We offer a crash replacement programme for carbon wheels. In case of accidents or heavy falls, violent shocks can damage your rim and make it impossible to use. With our Crash Replacement offer we offer you a service that allows you to replace your rim under special conditions: You get a 50 percent discount on the price of the rim (UD SLS carbon) 40 percent (3k Carbon), as well as the parts and the disassembly/reassembly. This offer is valid (for life) for an unlimited period of time for DUKE carbon rims and is transferable in the event of sale of the wheels to a third party.
