DUKE RIM WORLD RUNNER X 25

Name: DUKE RIM WORLD RUNNER X 25
Brand: DUKE RACING WHEELS
SKU: JANTE DUKE WR 25X
Price: 83.85 EUR
Availability: InStock

Duke World Runner X 25 rim for Gravel bike use

Variantes disponibles

RIM DIAMETER

HOLES NUMBER

RIM PROFILE

RIM FINISH

480 g

€129.00

€83.85 Tax included

In stock

Expected shipping date: 03/07/2025

Closed for inventory on June 30 and July 1

Quantity

dealer locator

DUKE WORLD RUNNER X 25 ARTISANAL RIM

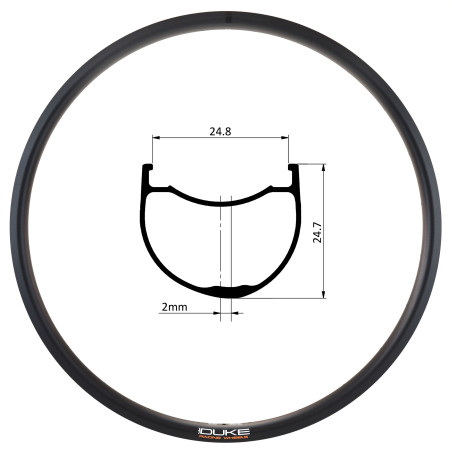

The DUKE World Runner X 25 rim is designed, tested in France, DUKE is the exclusive owner of the manufacturing tools. The DUKE Road Runner rim Has a profile height of 25mm. ASYMMETRIC rims: As the number of gears increases, The cassette-side and disc brack the flange of the hub is increasingly "pushed" towards the inside of the wheel have an asymetrical profil (2mm offset) Which makes it possible to increase the lateral stiffness of the wheel without gaining weight. The holes in the rim are off-centered, this makes it possible to close more the umbrella formed by the Spokes. Thus the spokes ensure a better maintenance of the rim and the lateral stiffness of the wheel is increased. Inner width 19,5mm. This gives more volume to the tires and improves efficiency, comfort and cornering grip. A wide rim also means that you can use finer, lighter tires while maintaining the comfort, softness and grip provided by a larger volume of air.

Technology

Hooked

Hooked

Hooked rim design
- Optimized for road and gravel tire pressures
- Ensures secure bead retention
- Wider internal width offers aerodynamic benefits
Offset

OFFSET

Asymmetrical spoke lacing
- Balances spoke tension on both sides
- Improves lateral stiffness, stability, and long-term durability
- No added weight
AntiBurp

AntiBurp

Anti-burp and anti-debeading system
- Specially designed inner rim hooks lock the tire beads securely
- Eliminates air loss under heavy cornering or compression
- Prevents tire debeading, even in the event of a puncture
Tubeless Ready

Tubeless Ready

Tubeless-compatible rim design
- Compatible with UST and Tubeless Ready standards
- Also compatible with tube-type (clincher) setups

Data sheet

RIM MATERIAL: ALU
RIM PROFILE: ASYMMETRICAL
RIM HEIGHT (MM): 25
SYSTEM MAX WEIGHT (KG): 120.0
INSIDE WIDTH (MM): 25.0
TYPE OF BRAKING: DISC
MAX STRAIN (N): 1100.0
PRACTICE TYPE: CX
GRAVEL BIKE
ROAD
TANDEM ROAD
NIPPLE POSITION: EXTERNAL
NIPPLE HEIGHT (MM): 16.0
REINFORCED RIM: NO
TYPE OF TYRE: TUBELESS OU CHAMBRE À AIR
VALVE HEIGHT (MM): 44
TAPE WIDTH (MM): 28.0
MAX PRESSURE (BAR): 4.5B WITH 40MM TYRE
ERD JANTE(S): WR25X 650B : 551
WR25X 700 : 589
ETRTO (MM): 584.0
622.0
RIM OFFSET (MM): 2.0
MOUNTING WITH WASHERS: ON E-BIKE (PILLAR 7048)
RECOMMENDED SUP 100KG (PILLAR 7048)
POSITION: FRONT
REAR
TYRE SECTION RANGE: 28MM 1,10" / 61MM 2,40"
STICKER TYPE: L58
AERO OPTIMIZED TYRE SIZE: 28MM
RIM BRAND: JANTE DUKE
WARRANTY: 2 YEARS
