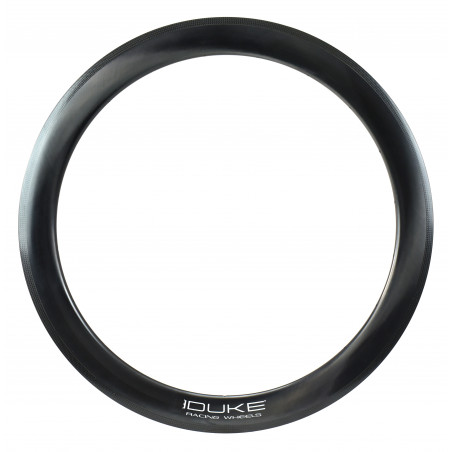

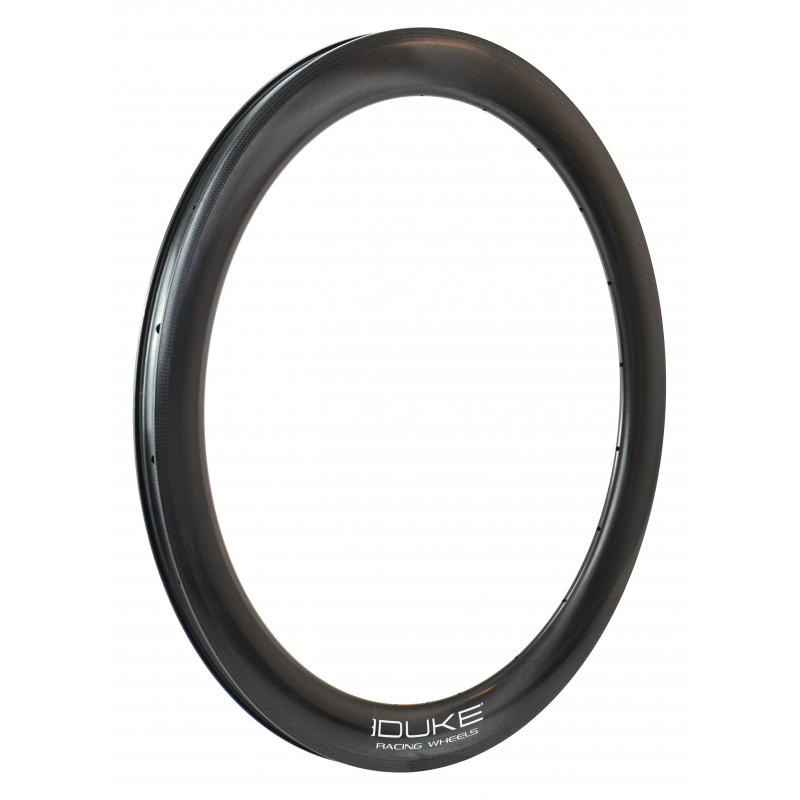

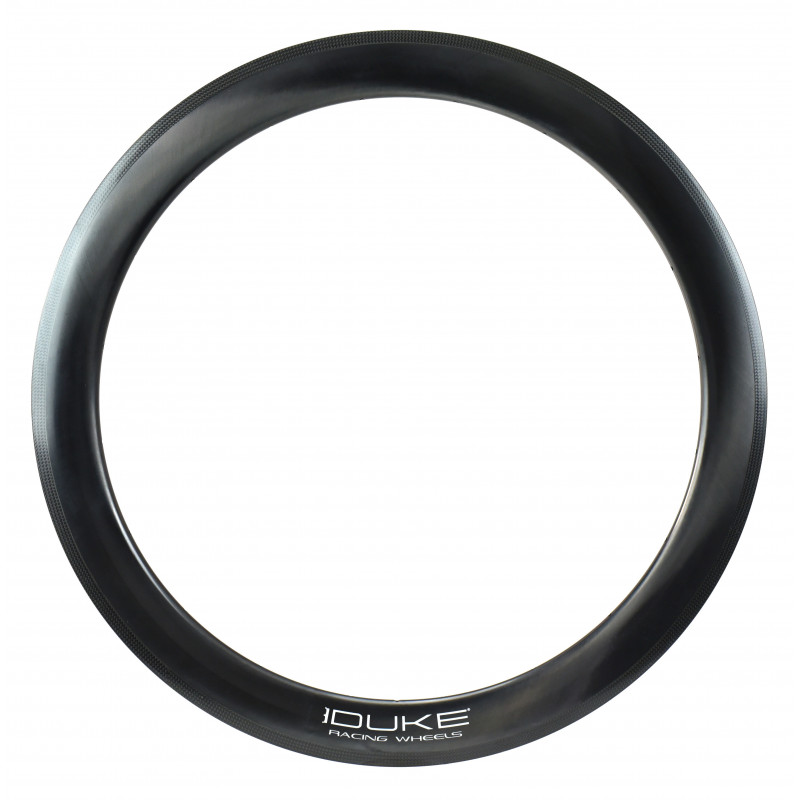

DUKE RIM BACCARA 56 Rb
The Baccara 56 are carbon rims suitable for road & competition use, Versatile on all types of roads, its internal width is 21mm for a height of 56mm.
Carbon rim with tires and Tubeless. High-end carbon road rim. As comfortable on the flat as on the most hilly roads thanks to its contained weight. Its large width makes it very aerodynamic, stable and not sensitive to lateral wind.Use on roads.
Available for rim brakes or disc brakes.
SLR2 technology, weight reduced by 10%. This process also allows a better filtration of vibrations. The rim profile has been redesigned to improve its aerodynamics and stability in all wind conditions.

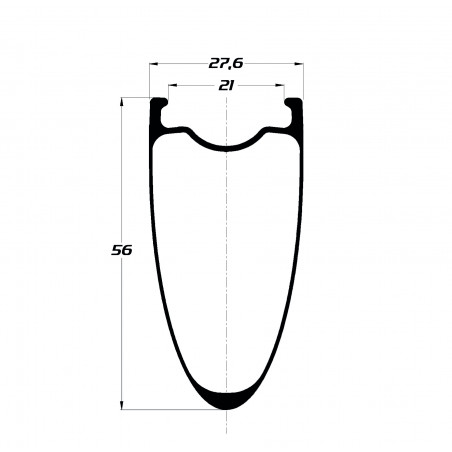

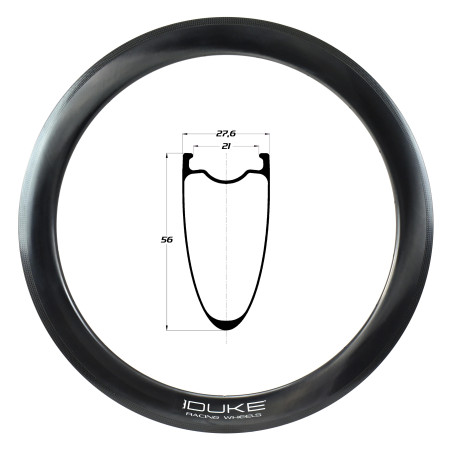

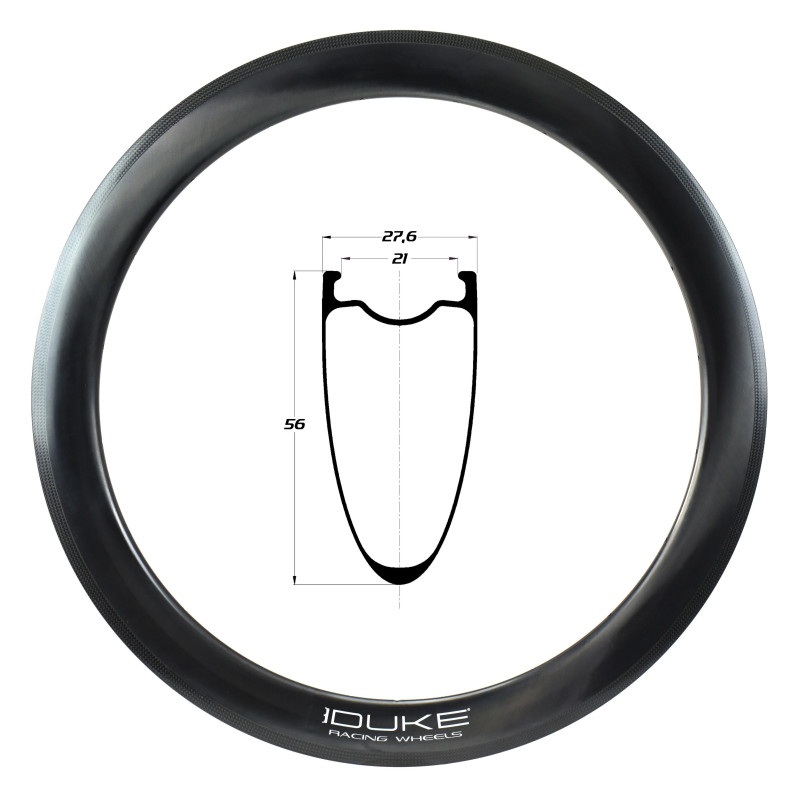

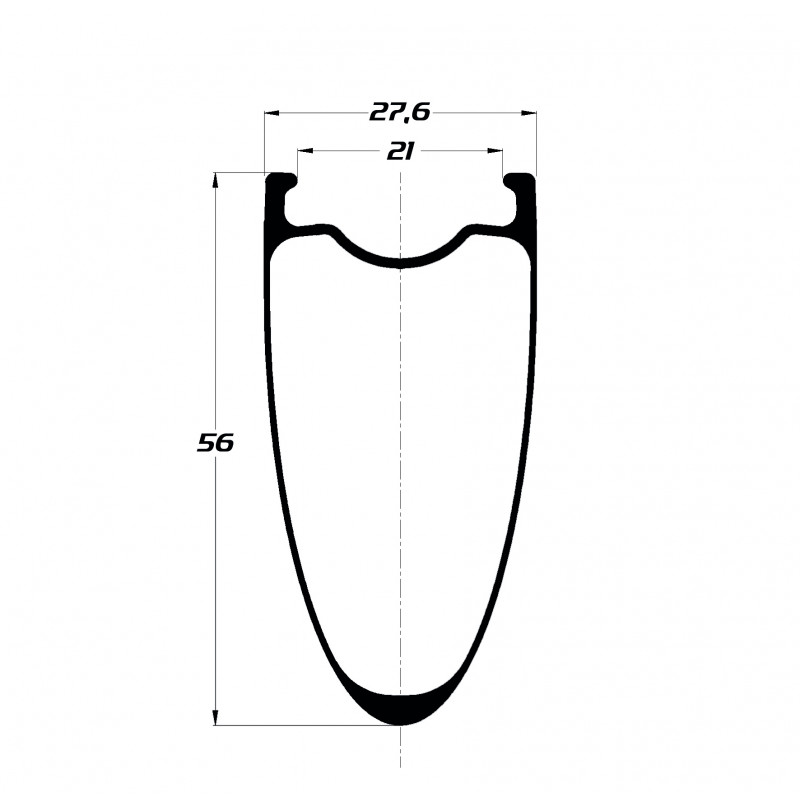

The outer width is increased to 27.6mm, has a new UV shape and reduces aerodynamic drag.
The wider 21mm hook width gives more volume to the tires and improves comfort and grip without losing performance.
Recommended tire widths are 25mm and 28mm, tubeless or tubetype. DUKE owns its manufacturing tools.
Technology
-
SLR2 (Super light road series 2)
SLR2 (Super Light Road series 2)
A design optimized for the demands of road and gravel riding
- Aerospace-grade resin and optimized carbon fiber lay-up
- Up to 10% lighter and stronger than the previous SLR1 version
- Tuned vertical compliance for more comfort and responsiveness -
VFP (Varnish Free Process)
VFP (Varnish Free Process)
A varnish-free finish process
- Reduces VOC emissions and carbon dust during production
- More scratch-resistant surface
- Naturally glossy finish -
Tubeless Ready
Tubeless Ready
Tubeless-compatible rim design
- Compatible with UST and Tubeless Ready standards
- Each rim comes with DUKE tubeless tape and valve
- Also compatible with tube-type (clincher) setups
Data sheet
- RIM MATERIAL
- CARBON
- RIM PROFILE
- SYMMETRICAL
- RIM HEIGHT (MM)
- 56
- SYSTEM MAX WEIGHT (KG)
- 135.0
- INSIDE WIDTH (MM)
- 21.0
- OUTER WIDTH (MM)
- 28.0
- TYPE OF BRAKING
- BRAKE PADS
- MAX STRAIN (N)
- 1200.0
- PRACTICE TYPE
- ROAD
TRACK
TRIATHLON&CLM - NIPPLE POSITION
- EXTERNAL
- NIPPLE HEIGHT (MM)
- 14.0
- TYPE OF TYRE
- TUBELESS OU CHAMBRE À AIR
- VALVE HEIGHT (MM)
- 71
- TAPE WIDTH (MM)
- 24.0
- MAX PRESSURE (BAR)
- 7.5B WITH 28MM TYRE
- ERD JANTE(S)
- 531.5
- ETRTO (MM)
- 622.0
- MOUNTING WITH WASHERS
- NO
- POSITION
- FRONT
REAR - TYRE SECTION RANGE
- 25MM 1,00" / 53MM 2,10"
- STICKER TYPE
- H42D
- RIM / STICKERS HEIGHT
- BACCARA 56 / 56MM
- AERO OPTIMIZED TYRE SIZE
- 25-26MM
- RIM BRAND
- JANTE DUKE
- WARRANTY
- 3 YEARS
Brand
DUKE RACING WHEELS
Supplier info
3701517702155
3701517702162
3701517702179
